Diagnostic Trouble Code Descriptions

Handles, Locks, Latches and Entry Systems

DTC Charts

NOTE: Refer to Description and Operation, Intelligent Access (IA) with Push Button Start in Antitheft and Alarm Systems to review the procedures for achieving the various ignition modes (ignition off, ignition in accessory, ignition in run, and ignition start) on vehicles with this feature.

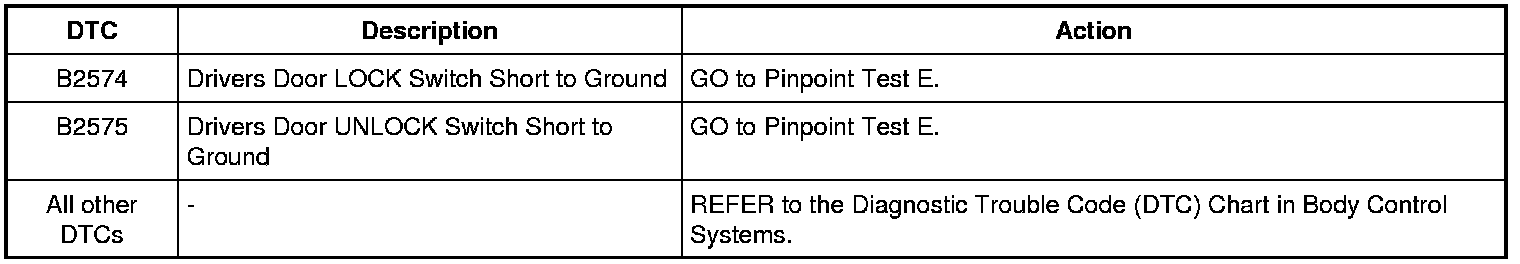

Driver Door Module (DDM) DTC Chart

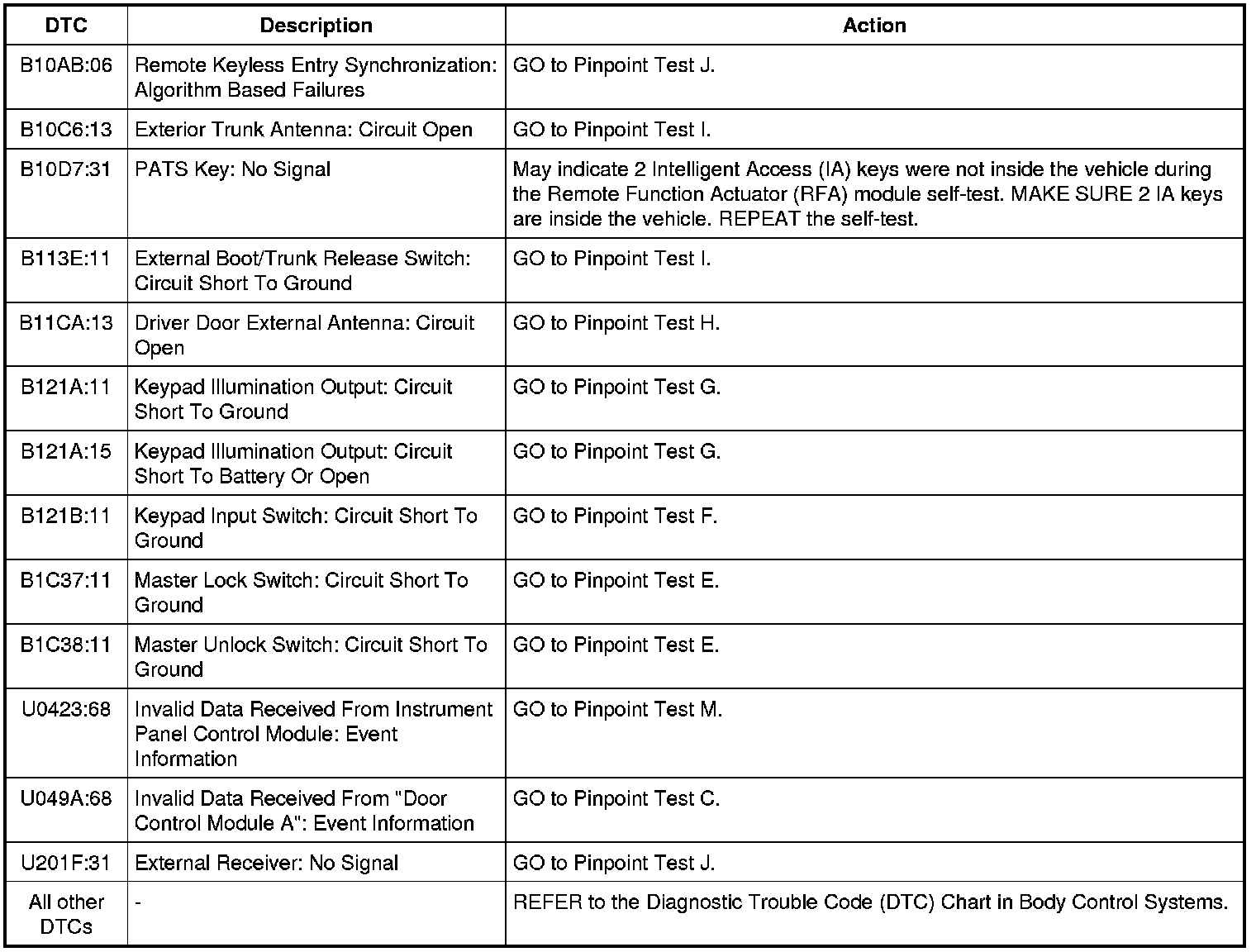

Remote Function Actuator (RFA) Module DTC Chart

NOTE: This module utilizes a 5-character DTC followed by a 2-character failure-type code. The failure-type code provides information about specific fault conditions such as opens, or shorts to ground. Continuous memory DTCs have an additional 2-character DTC status code suffix to assist in determining DTC history.
