Passenger Climate - Controlled Seat Module (PCSM-2)




Passenger Climate - Controlled Seat Module (PCSM-2)

Removal and Installation

NOTE: For parts identification and location, refer to Seat - Exploded View, Second Row Seat - Exploded View, Second Row.

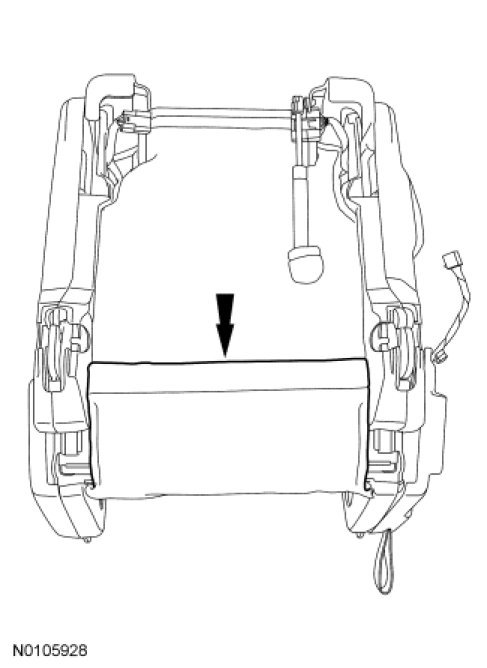

1. Separate the J-clips and open the cushion cover.





2. Remove the Dual Climate Controlled Seat Module (DCSM) in the following sequence.
- Pull up and release the 2 locking wedges.

- Disconnect the electrical connectors.

- Remove the 2 screws.

- Remove the DCSM.





3. To install, reverse the removal procedure.
