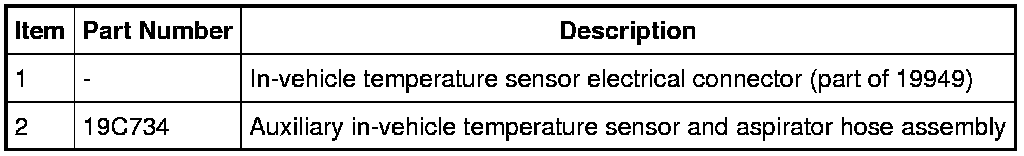

Auxiliary In-Vehicle Temperature Sensor
Auxiliary In-Vehicle Temperature SensorRemoval and Installation 1.
Remove the LH quarter trim panel.
2.
Disconnect the auxiliary in-vehicle temperature sensor electrical connector.
3.

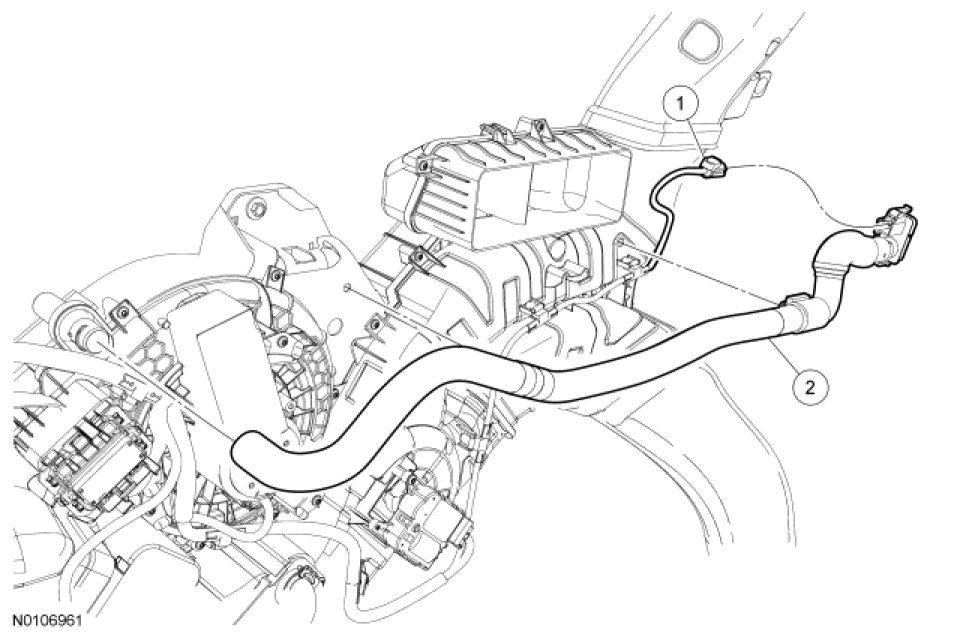

Detach the auxiliary in-vehicle temperature sensor and aspirator hose assembly from the heater core and evaporator core housing.
4.
To install, reverse the removal procedure.
