Auxiliary Blower Motor Speed Control

Auxiliary Blower Motor Speed Control









Removal and Installation

1. Remove the LH lower quarter trim panel.

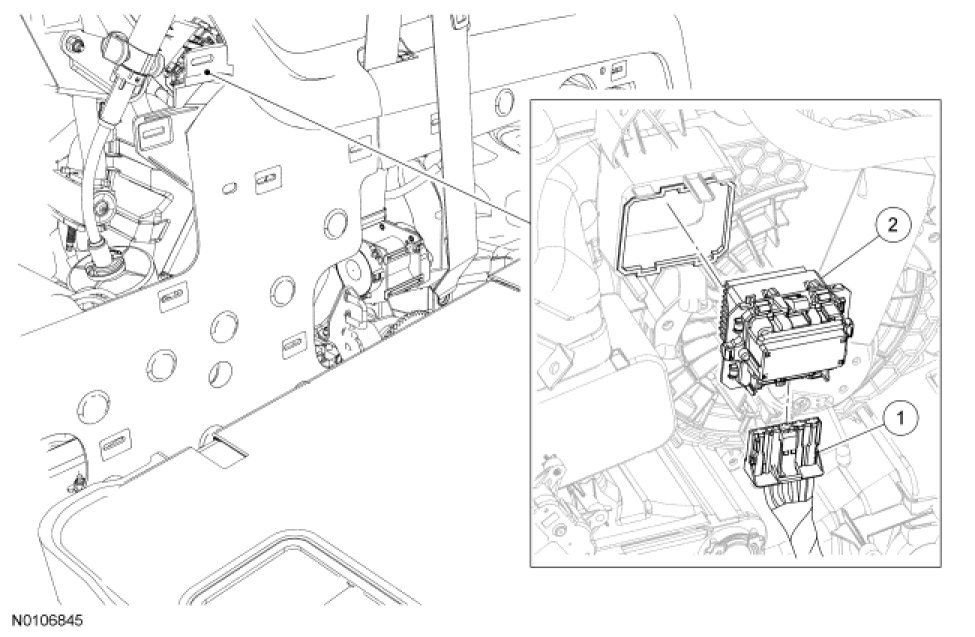

2. Detach the auxiliary blower motor speed control.

1. Gently depress the auxiliary blower motor speed control retaining tab.

2. With the retaining tab depressed, slide the auxiliary blower motor speed control toward the front of the vehicle to detach it from the auxiliary climate control housing.

3. Remove the auxiliary blower motor speed control.





3. Disconnect the auxiliary blower motor speed control electrical connector.

4. To install, reverse the removal procedure.
