Heating Ventilation Air Conditioning (HVAC) Module




Heating Ventilation Air Conditioning (HVAC) Module









Removal and Installation

1. Remove the glove compartment.

2. Remove the RH instrument panel side trim panel.

3. NOTE: Instrument panel shown removed for clarity.

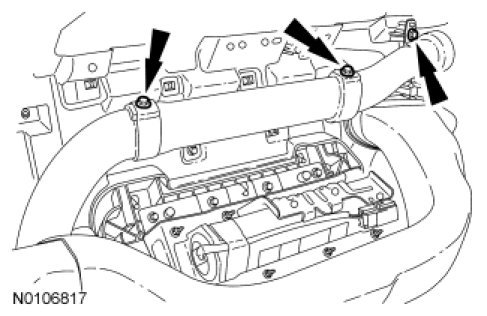

Working through the glove compartment opening, remove the 3 RH demister duct screws and remove the RH demister duct in 2 separate pieces.

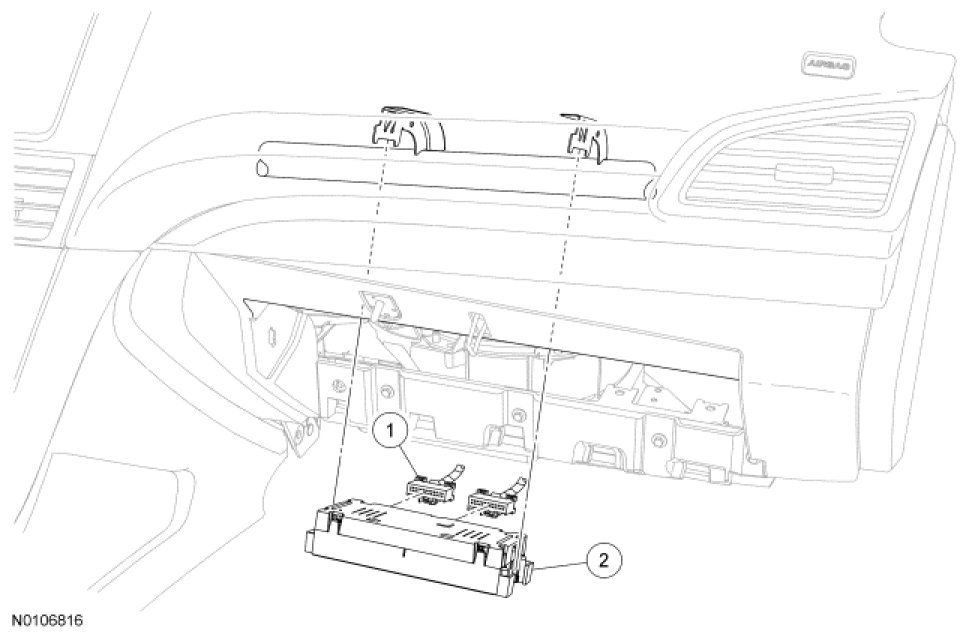

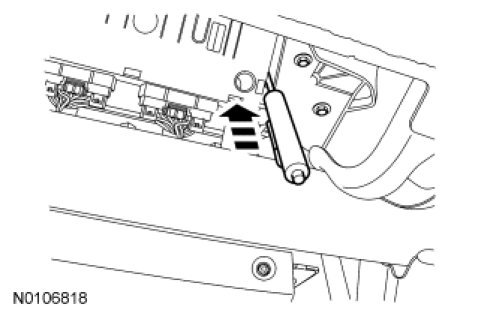

4. Using a suitable tool, release the 2 retaining tabs and detach the HVAC module from the bracket.

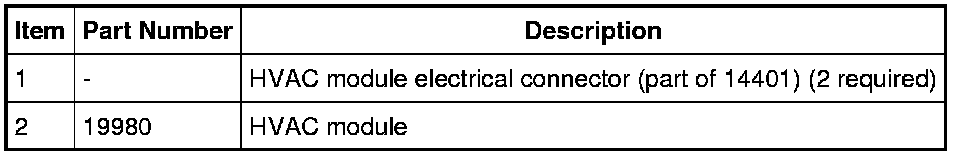

5. Disconnect 2 HVAC module electrical connectors and remove the HVAC module.

6. To install, reverse the removal procedure.
