Rear Heating Ventilation Air Conditioning (RHVAC) Module

Rear Heating Ventilation Air Conditioning (RHVAC) Module

Vehicles With Short Floor Console









Vehicles With Long Floor Console









Removal and Installation

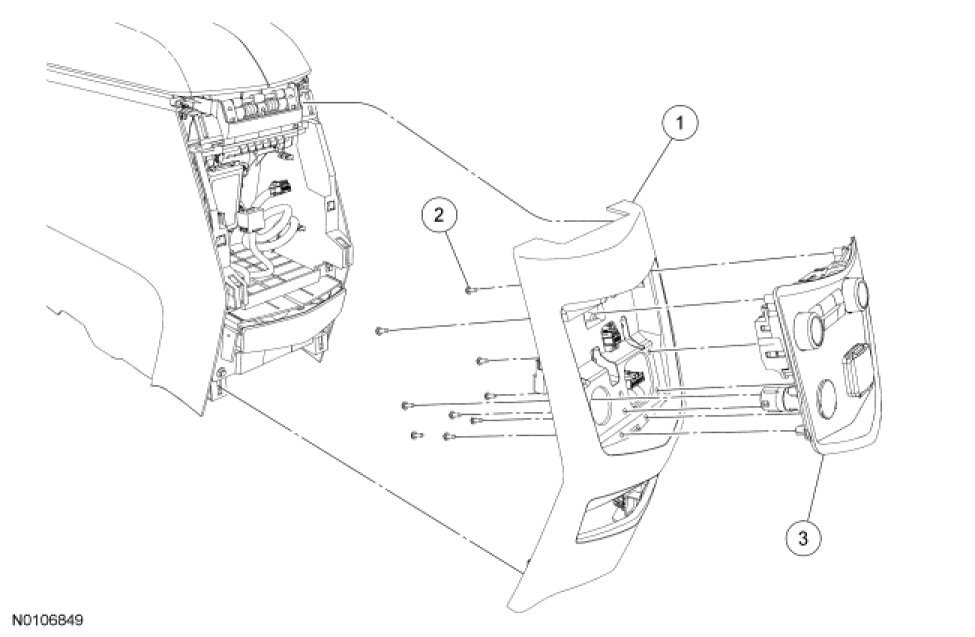

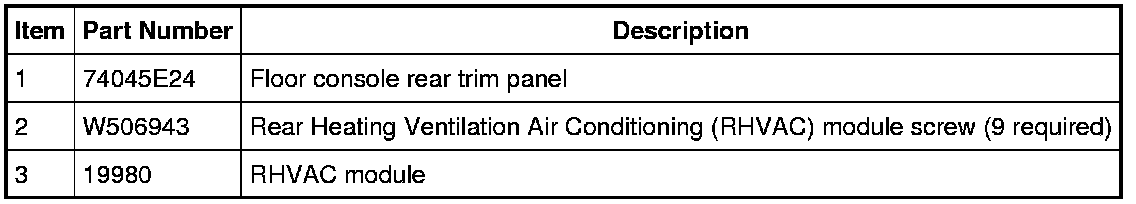

Vehicles with short floor console

1. Remove the floor console rear trim panel.
- Disconnect the electrical connectors.

2. Remove the 9 Rear Heating Ventilation Air Conditioning (RHVAC) module screws.

3. Remove the RHVAC module.
- Disconnect the electrical connectors.

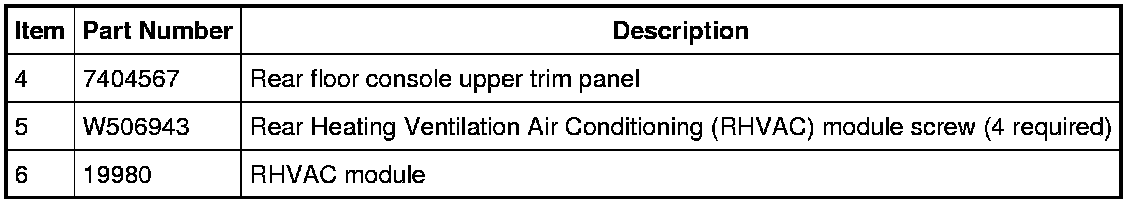

Vehicles with long floor console

4. Remove the rear floor console upper trim panel.
- Disconnect the electrical connector.

5. Remove the 4 RHVAC module screws.

6. Remove the RHVAC module.

All vehicles

7. To install, reverse the removal procedure.
