Refrigerator: Service and Repair

Refrigerator Switch

Removal and Installation

1. Remove the 4 screws and the rear armrest.

2. Remove the refrigerator opening trim panel.
- Remove the 2 upper and 8 side screws.

3. Remove the 6 screws and the rear cup holder.
- Disconnect the electrical connectors.

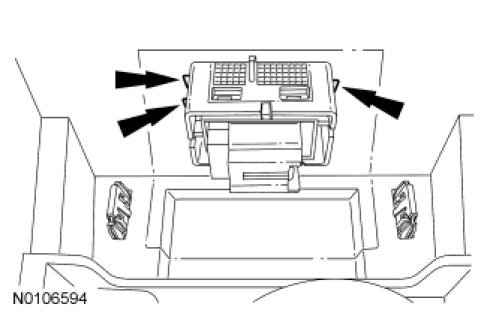

4. Press the 3 refrigerator switch bezel retaining tabs inward and remove the refrigerator switch and bezel from the rear cup holder.





5. Remove the refrigerator switch from the refrigerator switch bezel.
- Separate the 4 refrigerator switch retaining tabs from the refrigerator switch bezel.

6. To install, reverse the removal procedure.
- To install, make sure to align the guide pins to the guide pin holes.
