Symptom Related Diagnostic Procedures

Communications Network

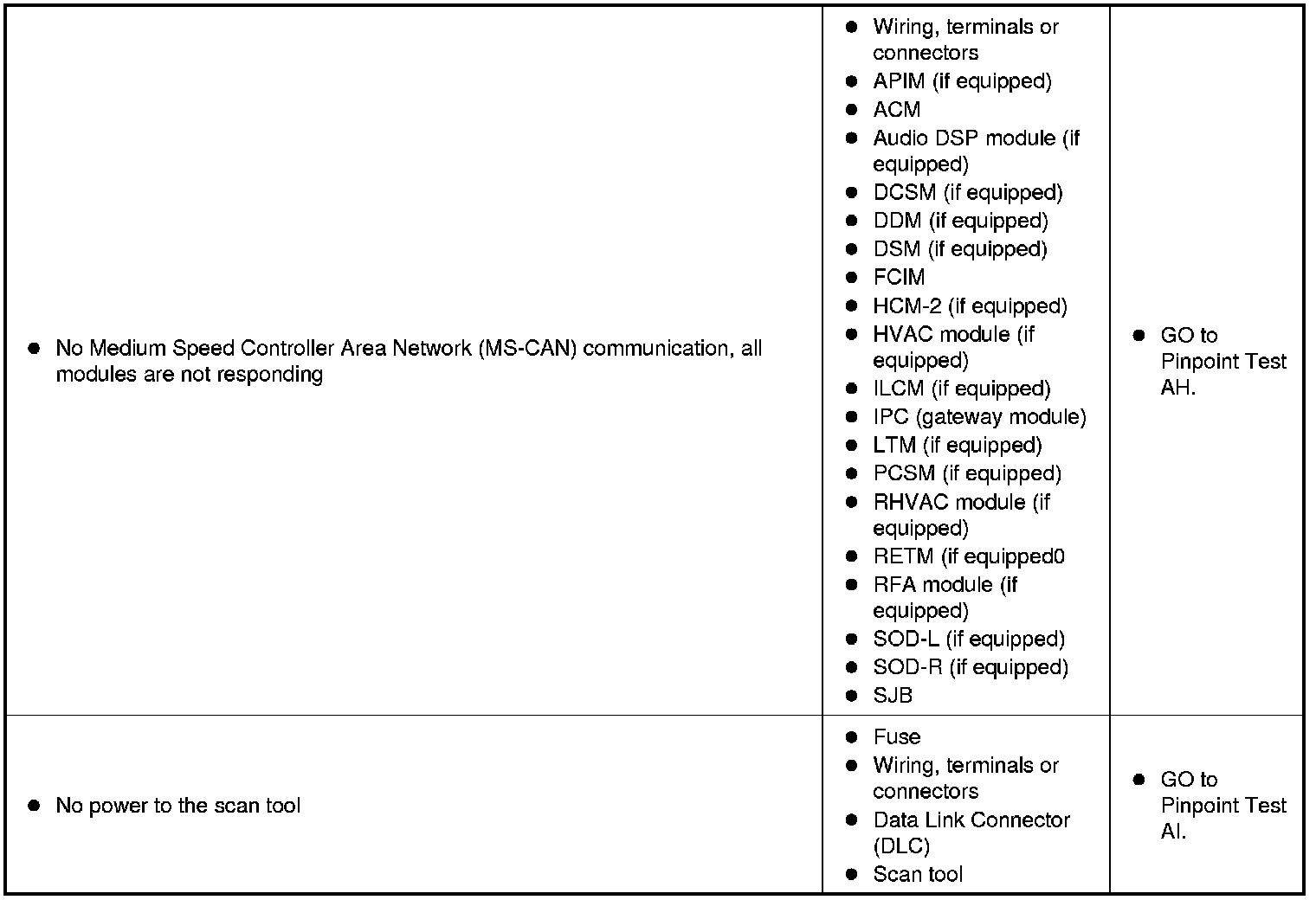

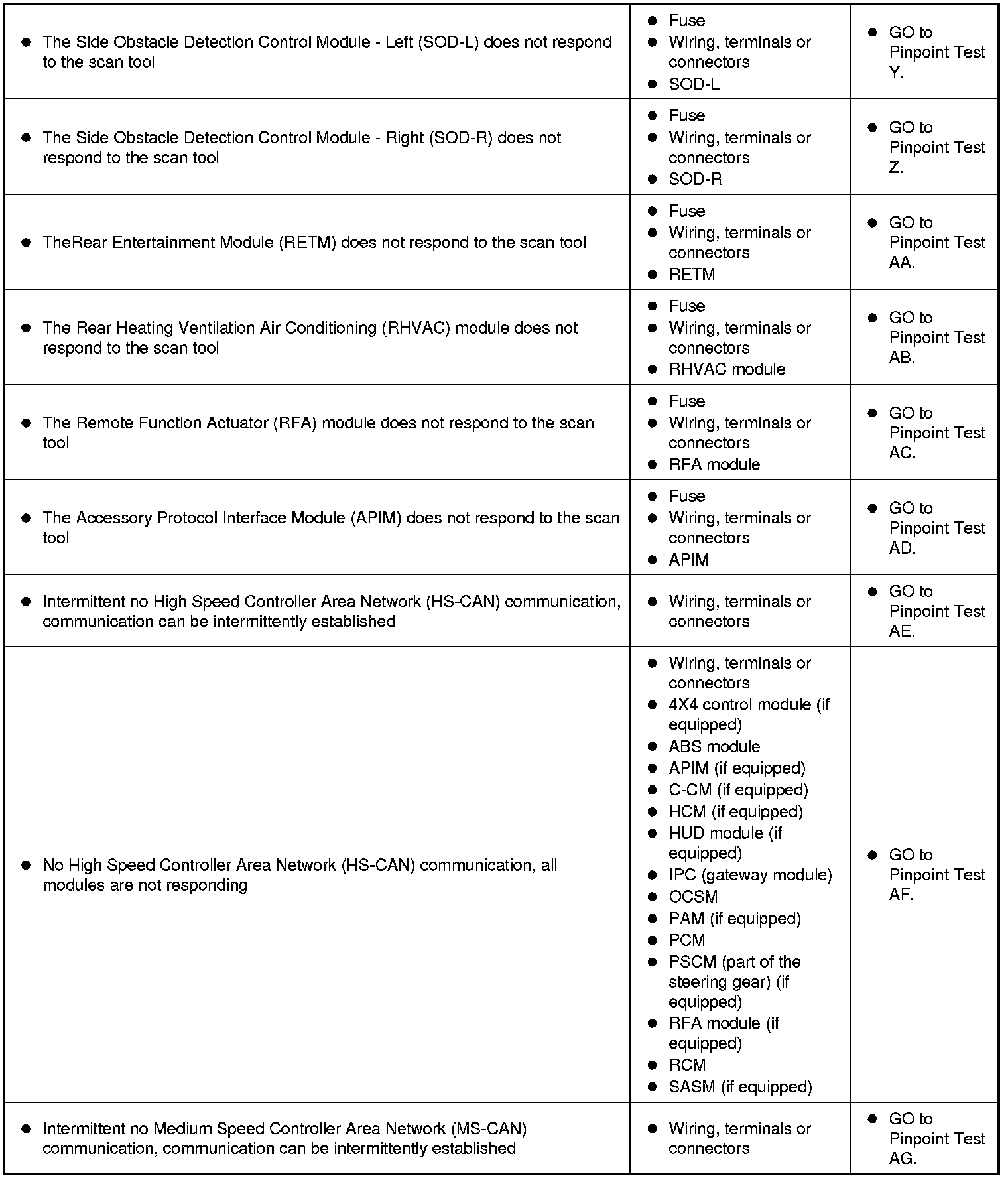

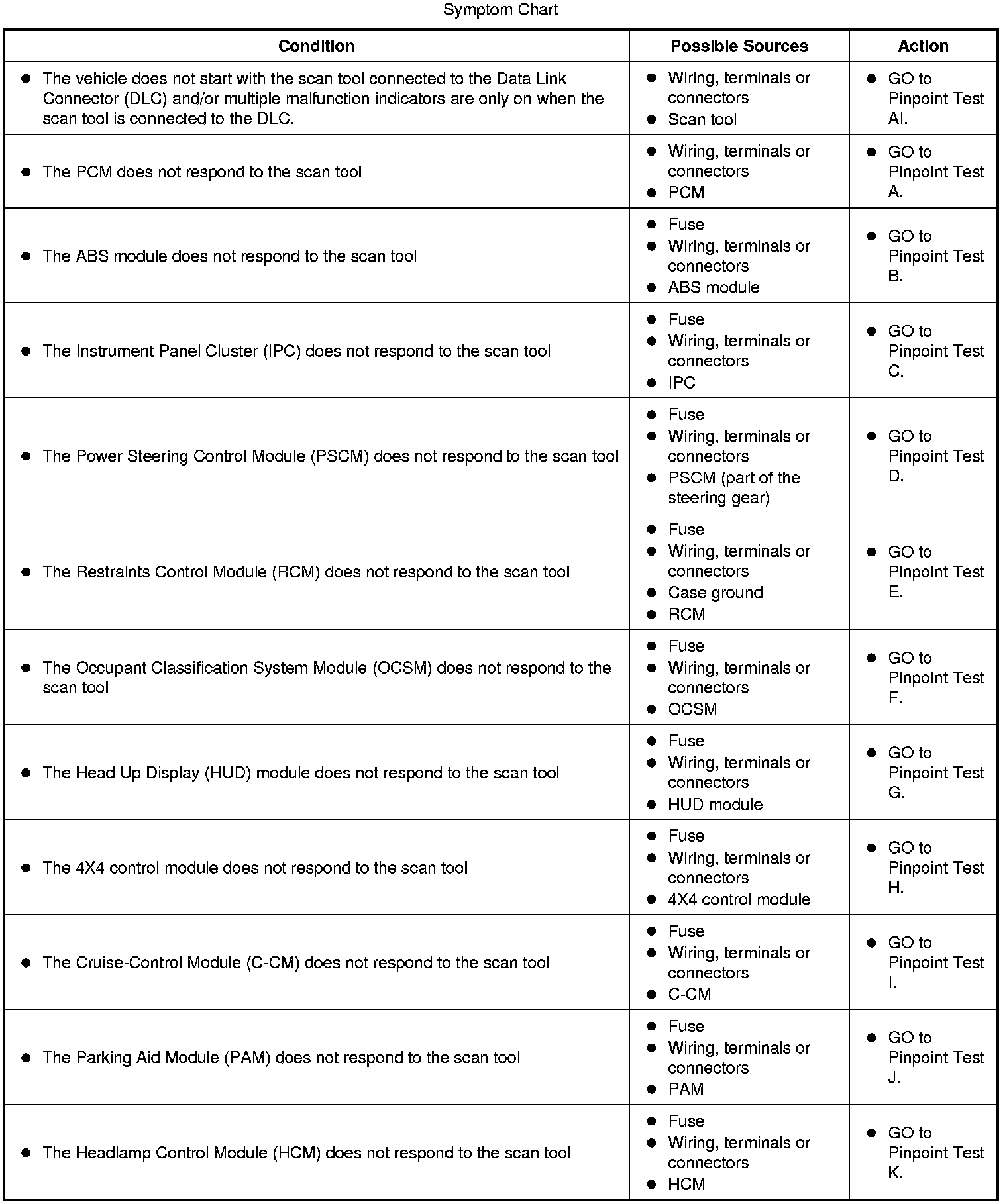

Symptom Chart

NOTE: Refer to Description and Operation, Intelligent Access (IA) with Push Button Start in Antitheft and Alarm Systems to review the procedures for achieving the various ignition states (ignition off, ignition in accessory, ignition on, ignition start).
