Power Window Switch: Service and Repair

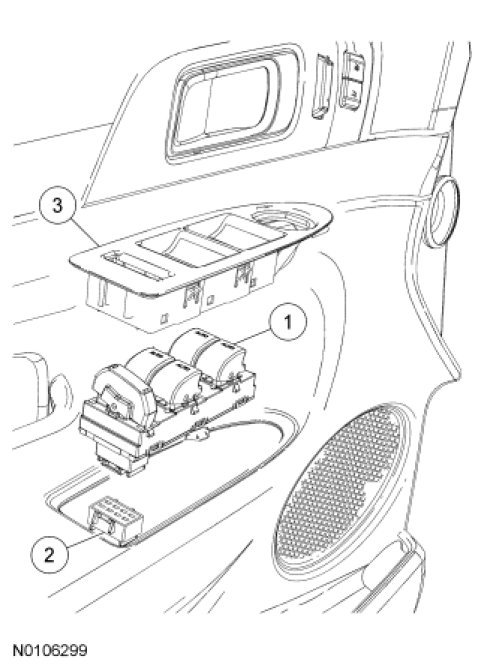

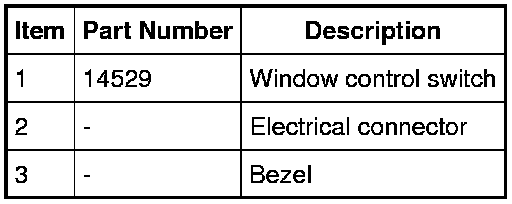

Window Control SwitchNOTE: LH front shown, all others similar.
Removal and Installation 1.
NOTE: LH front shown, all others similar.

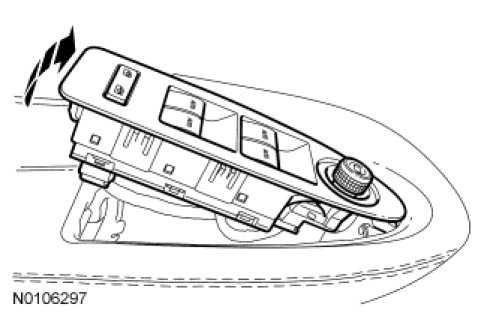

Using a non-marring tool, carefully pry the rear of the switch bezel upward to release the rear clip.
2.
Disconnect the electrical connector(s).
3.
Release the tabs to remove the switch assembly from the bezel.
4.
To install, reverse the removal procedure.
