Rain Sensor: Service and Repair
Rain Sensor 1.
Remove the Headlamp Control Module 2 (HCM-2).
2.
NOTE: Lightly press the
rain sensor against the windshield to relieve the clip tension.

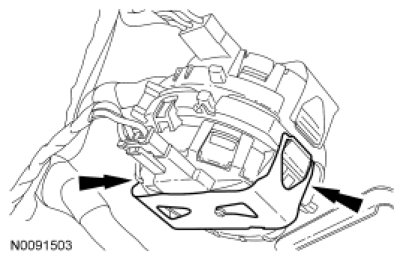

Release the 2
rain sensor retaining clips and remove the rain sensor.
3.
To install, reverse the removal procedure.
-
Prior to installing the
rain sensor, the windshield glass area of the rain sensor must be cleaned.
