DVD Player: Service and Repair

Digital Versatile Disc (DVD) Player









Removal and Installation

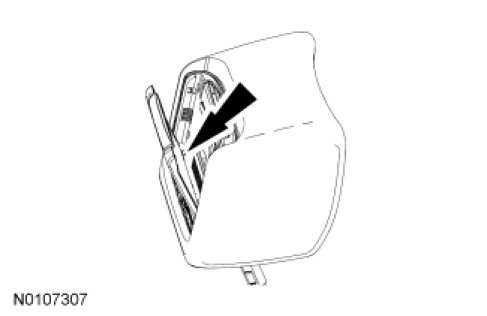

1. Tilt the DVD player back slightly, release the locking tab using a small flat-bladed screwdriver, and tilt the screen completely down.

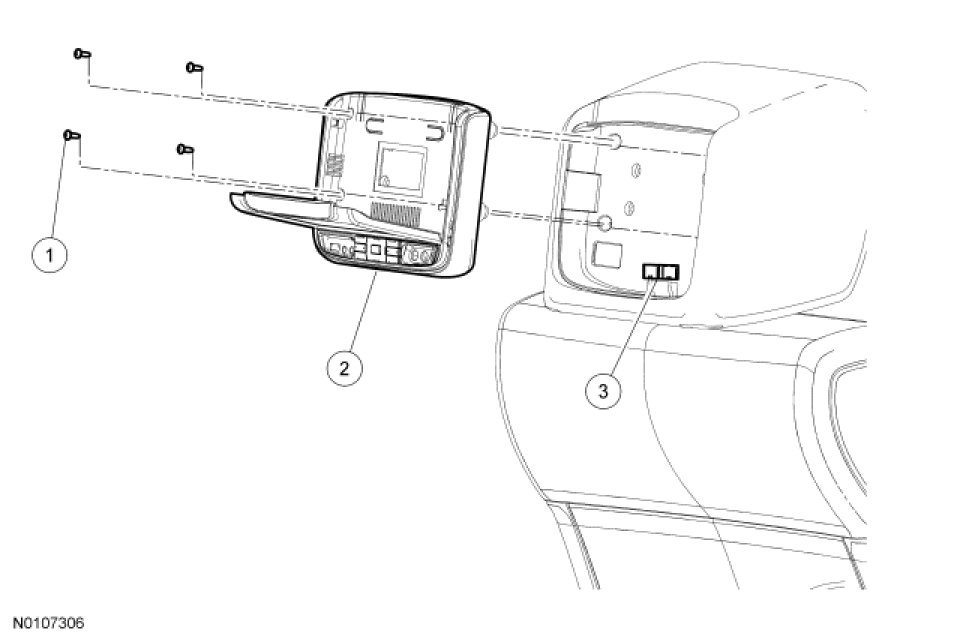

2. Remove the 4 screws and the DVD player.
- Disconnect the electrical connectors.

3. To install, reverse the removal procedure.
- Carry out the Occupant Classification Sensor (OCS) System Reset in Restraint Systems.
