Radiator Grille Support




Radiator Grille Support

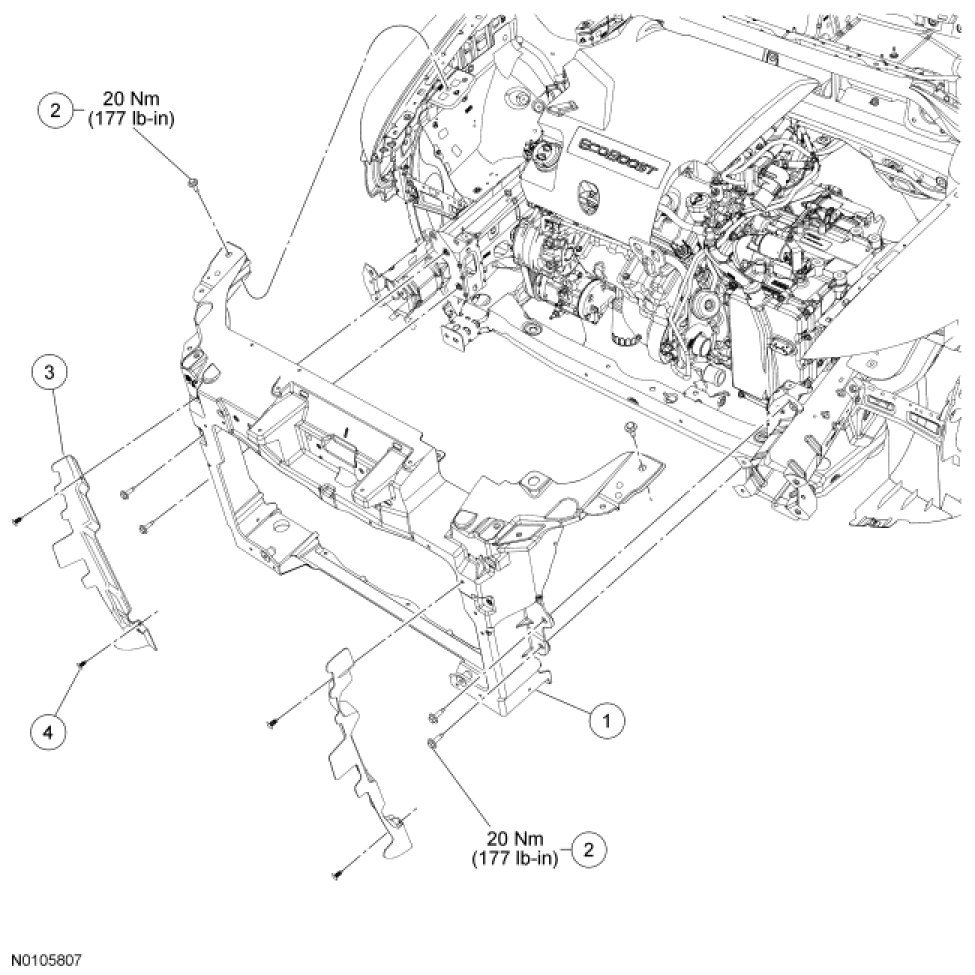

Removal and Installation

1. Remove the front bumper. For additional information, refer to Bumper.

2. Remove the headlamps.

3. Remove the hood latch assembly. For additional information, refer to Doors, Hood and Trunk &/or Locks.

4. Remove the radiator side air deflectors.
- Remove the 4 radiator air deflector pin-type retainers (2 each side).

5. Reposition the power steering fluid cooler.
- Remove the 2 power steering fluid cooler bolts.

- Remove the 2 power steering fluid cooler hose pin-type retainers.

6. Unclip the ambient air temp sensor wiring harness retainer clip and reposition the wiring harness.

7. Disconnect the hood sensor electrical connector.

8. Release all wiring harness retainers from the radiator grille support.

9. Remove the 6 radiator grille support bolts.

10. Remove the radiator grille support.

11. To install, reverse the removal procedure.
