Dual Climate Controlled Seat Module (DCSM) DTC Chart

Seats

DTC Charts

NOTE: Refer to Description and Operation, Intelligent Access with Push Button Start in Antitheft and Alarm Systems to review the procedures for achieving the various ignition states (ignition OFF, ignition in ACCESSORY, ignition ON, ignition START) on vehicles with this feature.

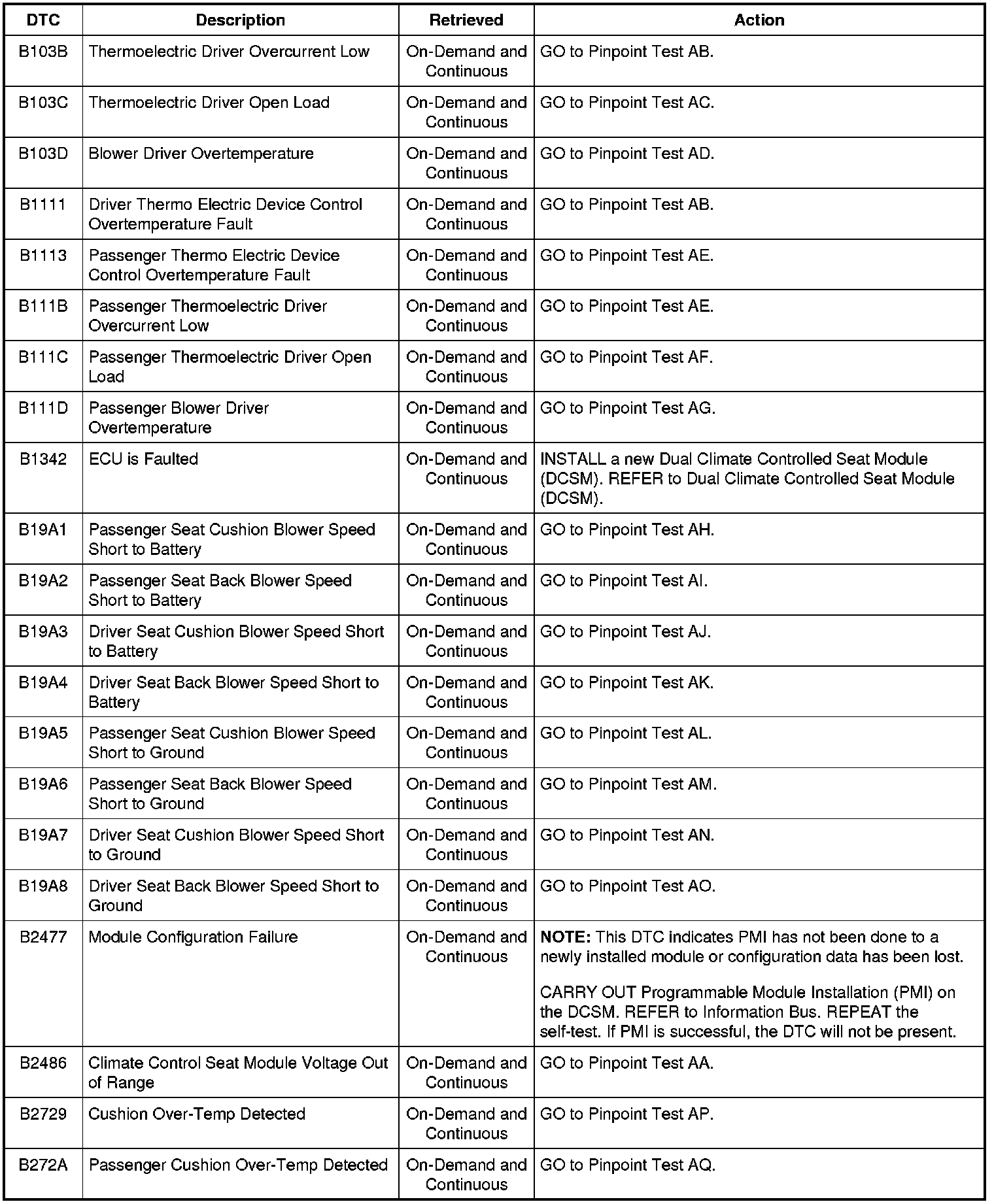

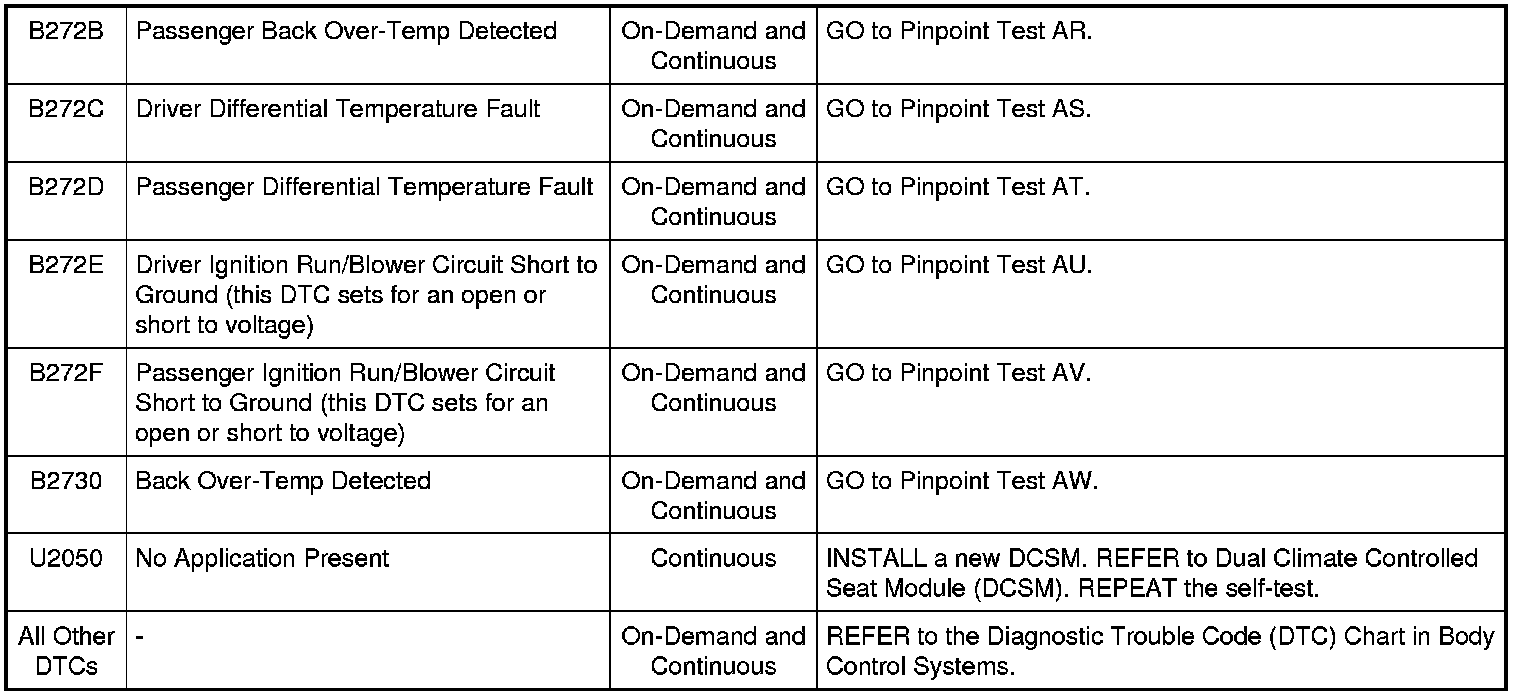

Dual Climate Controlled Seat Module (DCSM) DTC Chart
