Lincoln
>>
2010
>>
MKT AWD V6-3.7L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>

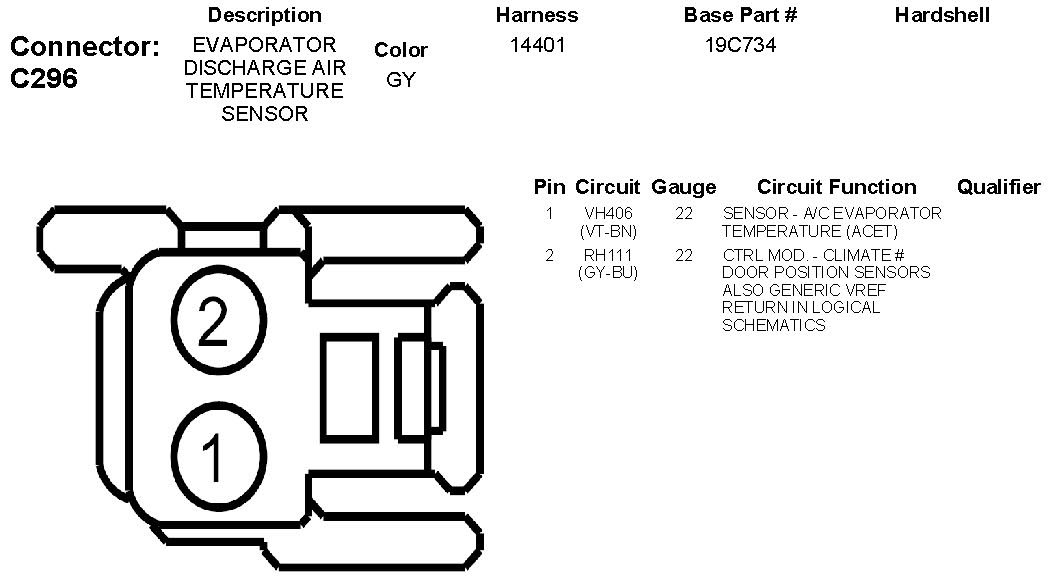

Discharge Air Temperature Sensor / Switch, HVAC
Discharge Air Temperature Sensor / Switch, HVAC
