Home
>>
Lincoln
>>
2010
>>
MKT AWD V6-3.7L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Seat Temperature Element
>>

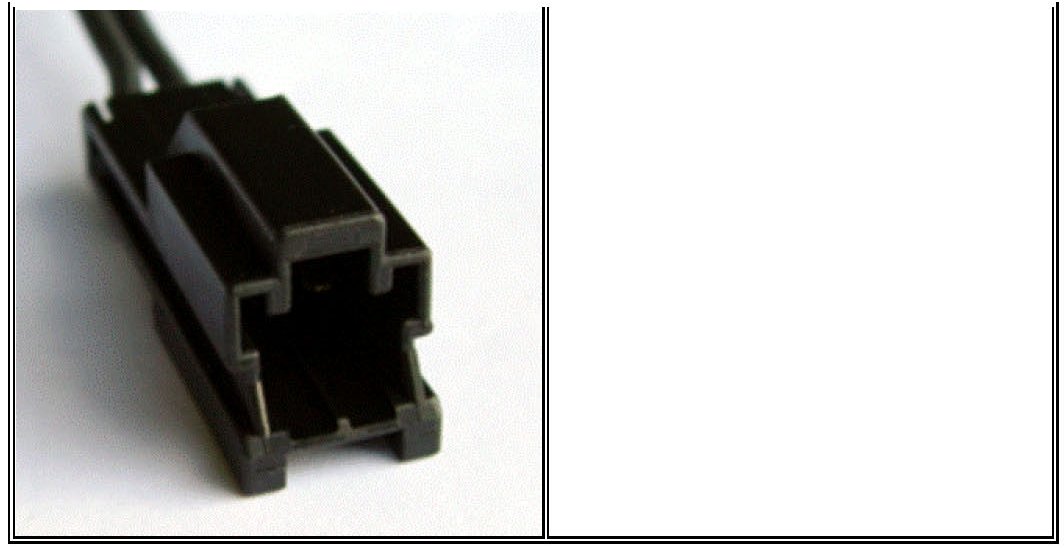

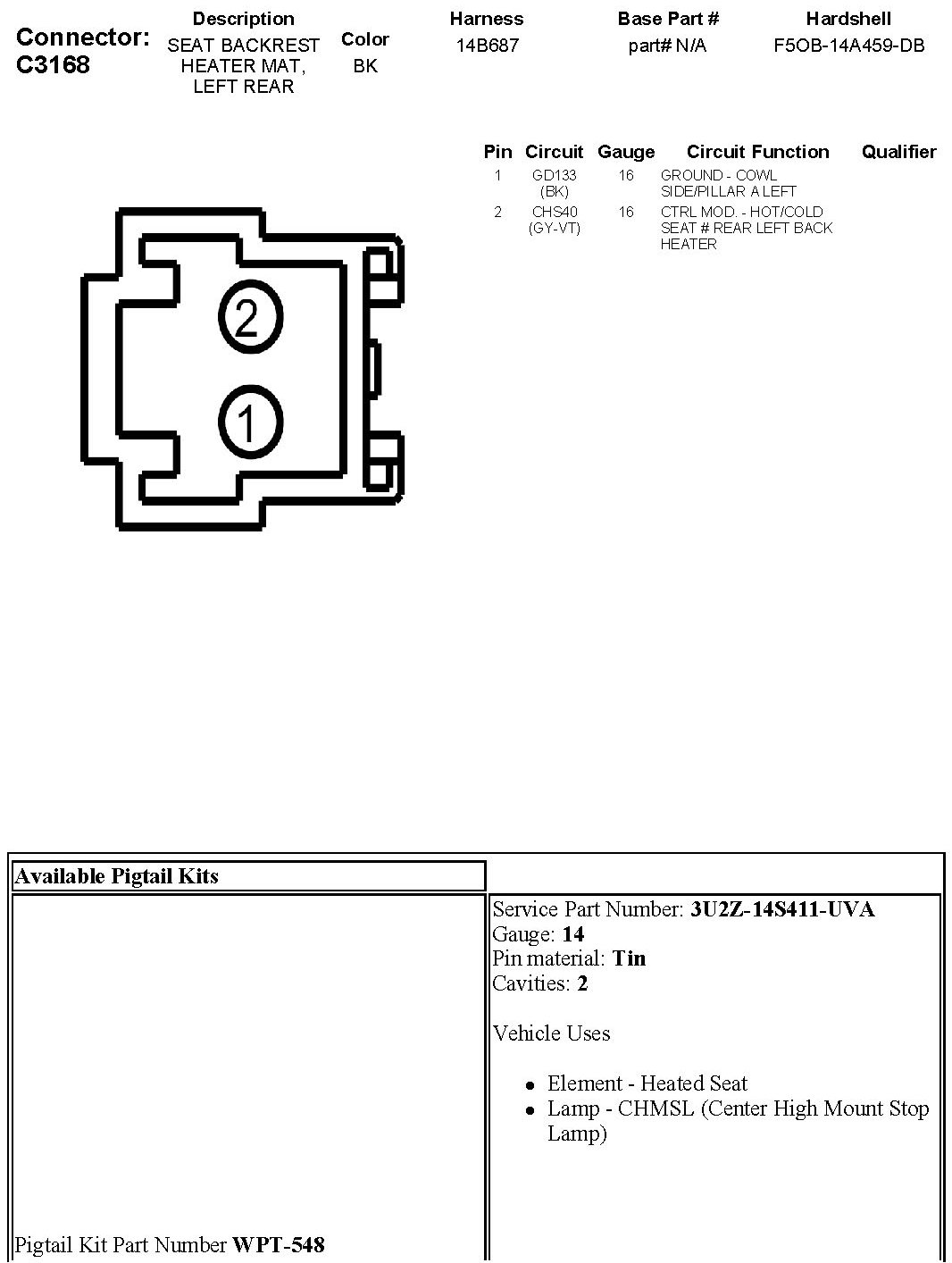

Seat Backrest Heater MAT, Left Rear
Seat Backrest Heater MAT, Left Rear
