Exterior Moulding / Trim




Exterior Trim - Exploded View

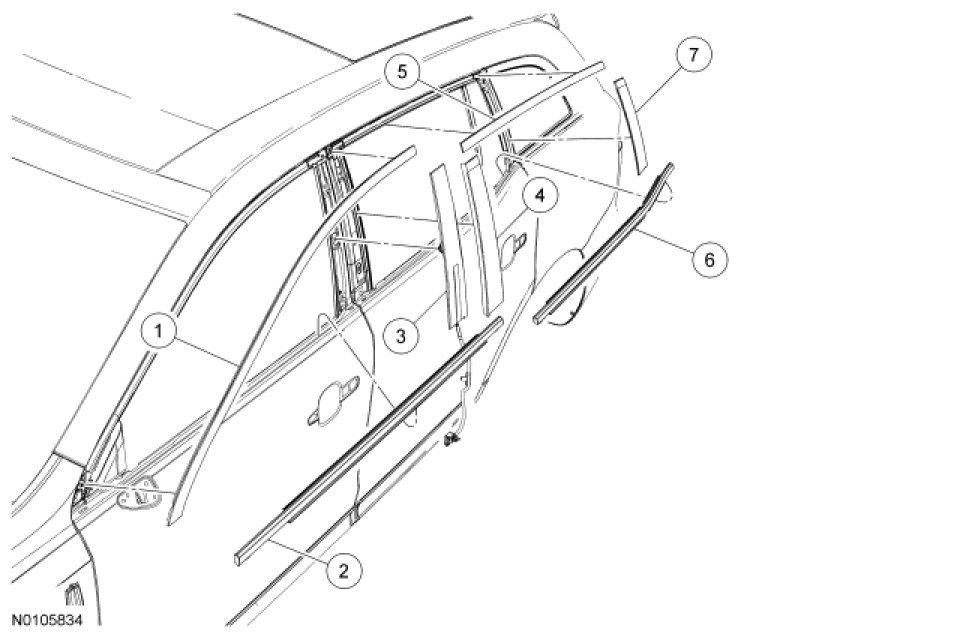

Body Side Upper Mouldings and Appliques

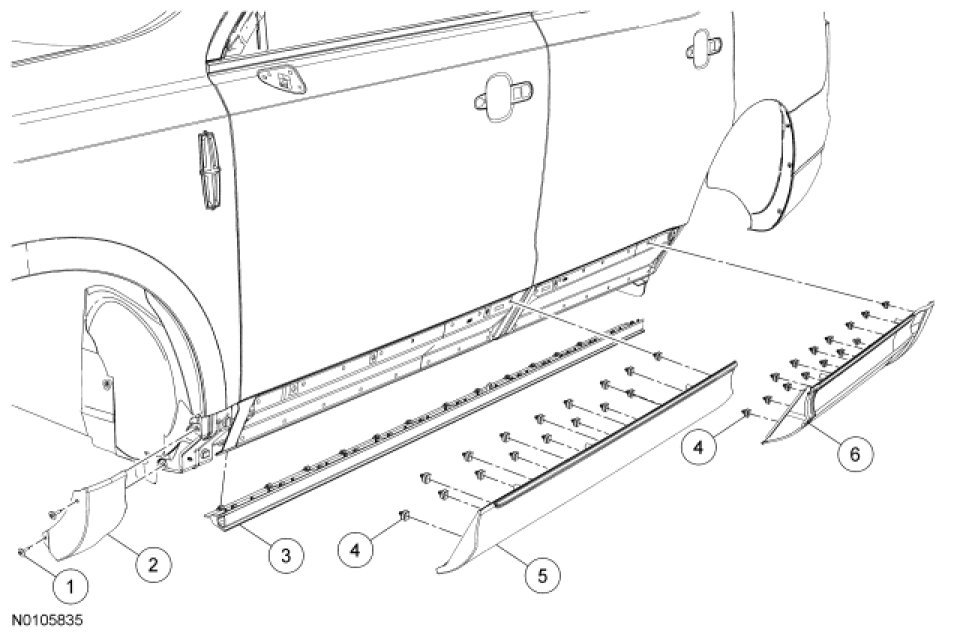

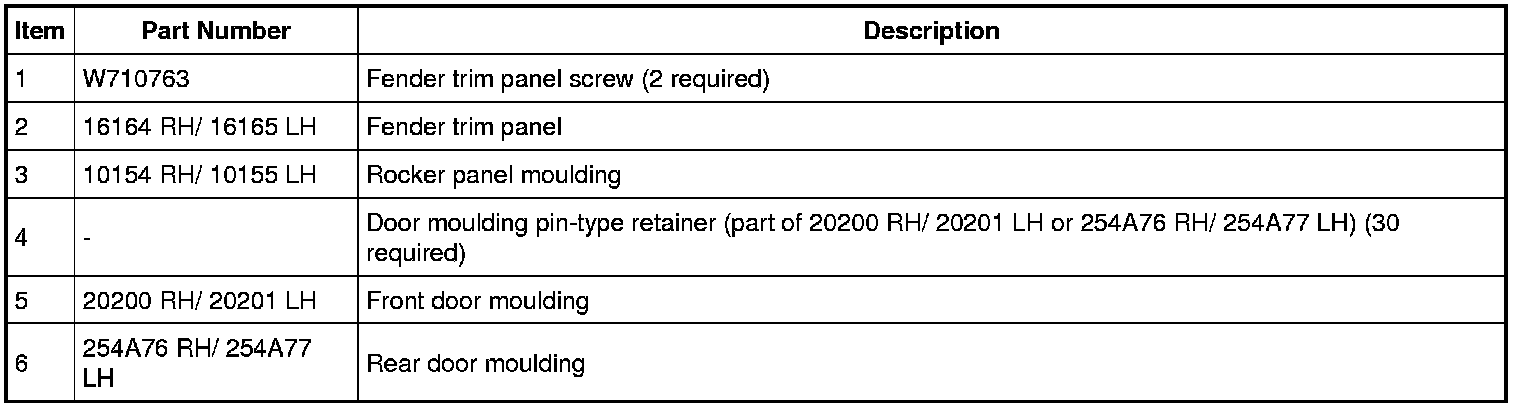

Body Side Lower Mouldings

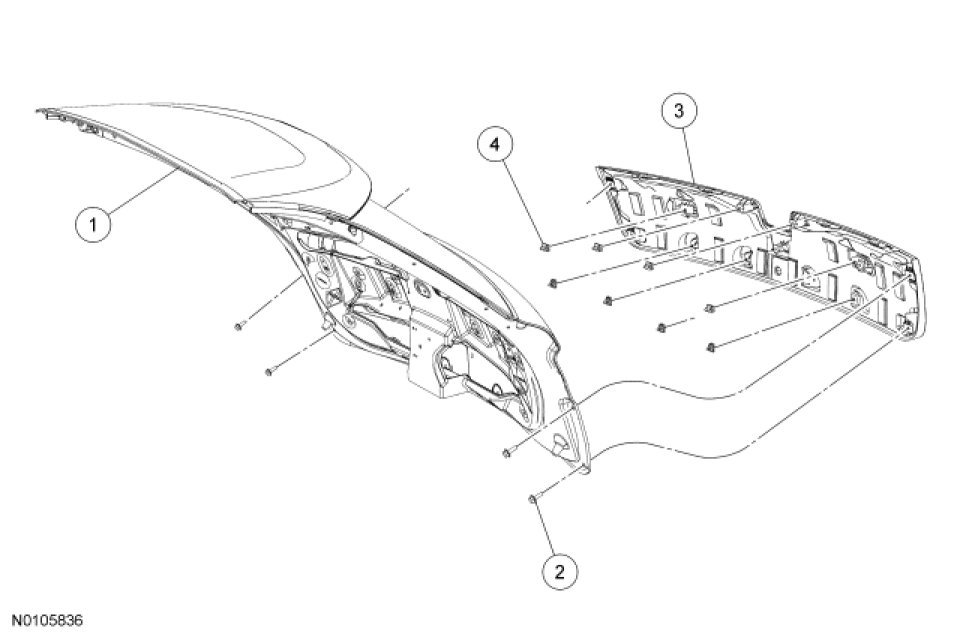

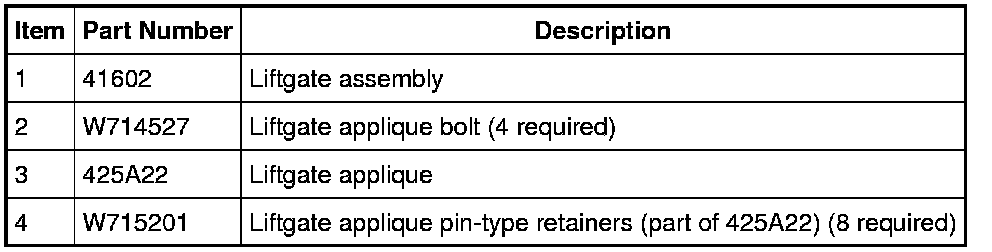

Liftgate Applique
