Register - Driver Side

Register - Driver Side

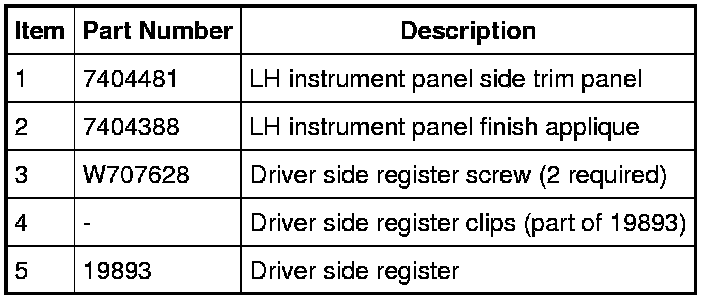

Removal and Installation

1. Remove the LH instrument panel side trim panel.

2. Remove the LH instrument panel finish applique.

3. Remove the 2 LH register screws.

4. NOTE: The 2 driver side register clips must be detached with a slim pocket-type screwdriver or similar. Use of a larger tool will distort or damage the instrument panel padding.

Using a suitable tool, release the 2 clips on the top of the driver side register and remove the register.

5. To install, reverse the removal procedure.
