Horn: Service and Repair

Horn









Removal and Installation

1. With the vehicle in NEUTRAL, position it on a hoist. For additional information, refer to Vehicle Jacking and Lifting.

2. Remove the 4 screws from the lower splash shield and set aside.

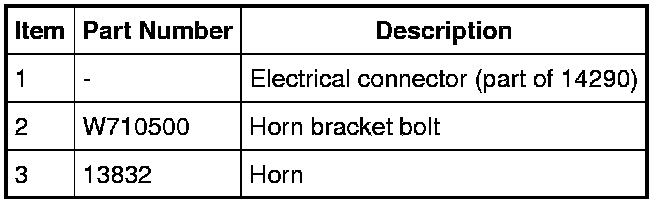

3. NOTE: The horn and bracket are installed as an assembly.

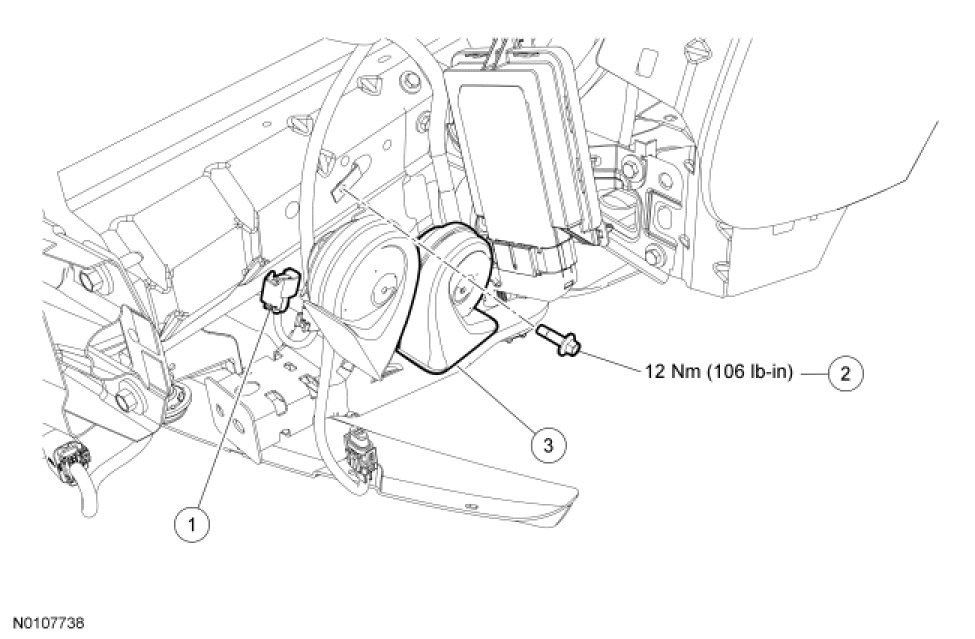

Remove the bolt and the horn.

- Disconnect the electrical connector.

- To install, tighten to 12 Nm (106 lb-in).

4. To install, reverse the removal procedure.
