Parking Assist Control Module: Service and Repair

Parking Aid Module (PAM)









Removal and Installation

1. NOTE: Module configuration is required when a new Parking Aid Module (PAM) is being installed.

Upload the PAM configuration information to the scan tool. For additional information, refer to Programmable Module Installation (PMI) in Information Bus. Programmable Module Installation (PMI)

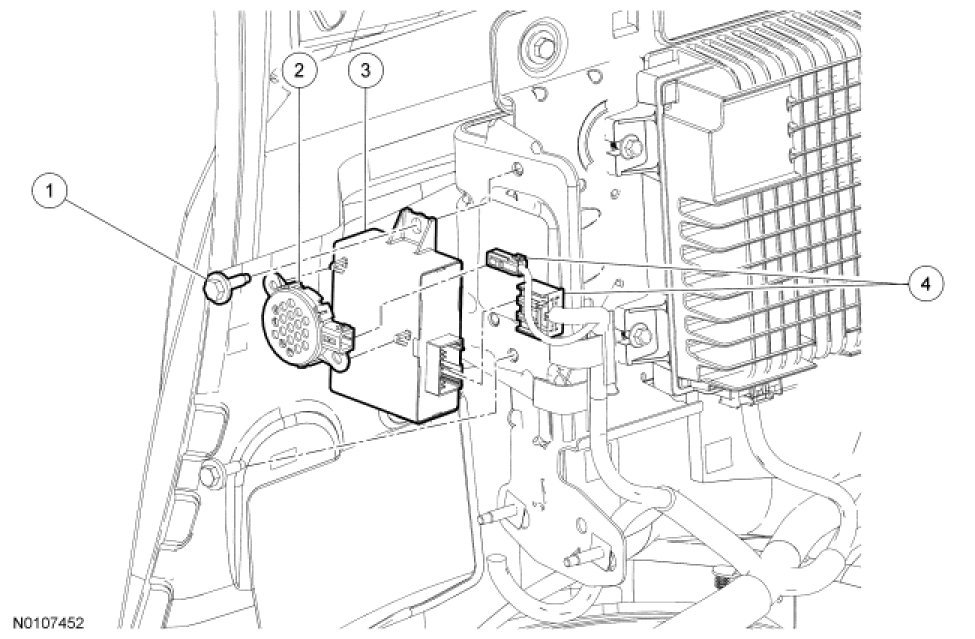

2. Remove the RH rear interior quarter trim panel. For additional information, refer to Information Bus.

3. If replacing the parking aid speaker only, proceed as follows:
- Disconnect the electrical connector.

- Disengage the clips.

- Remove the parking aid speaker.

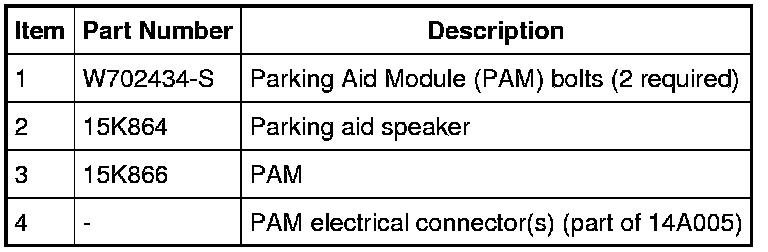

4. If replacing the PAM, proceed as follows:
- Disconnect the electrical connector.

- Remove the 2 bolts.

- Remove the PAM.

5. To install, reverse the removal procedure.
- Download the configuration information to the PAM. For additional information, refer to Programmable Module Installation (PMI) in Information Bus. Programmable Module Installation (PMI)
