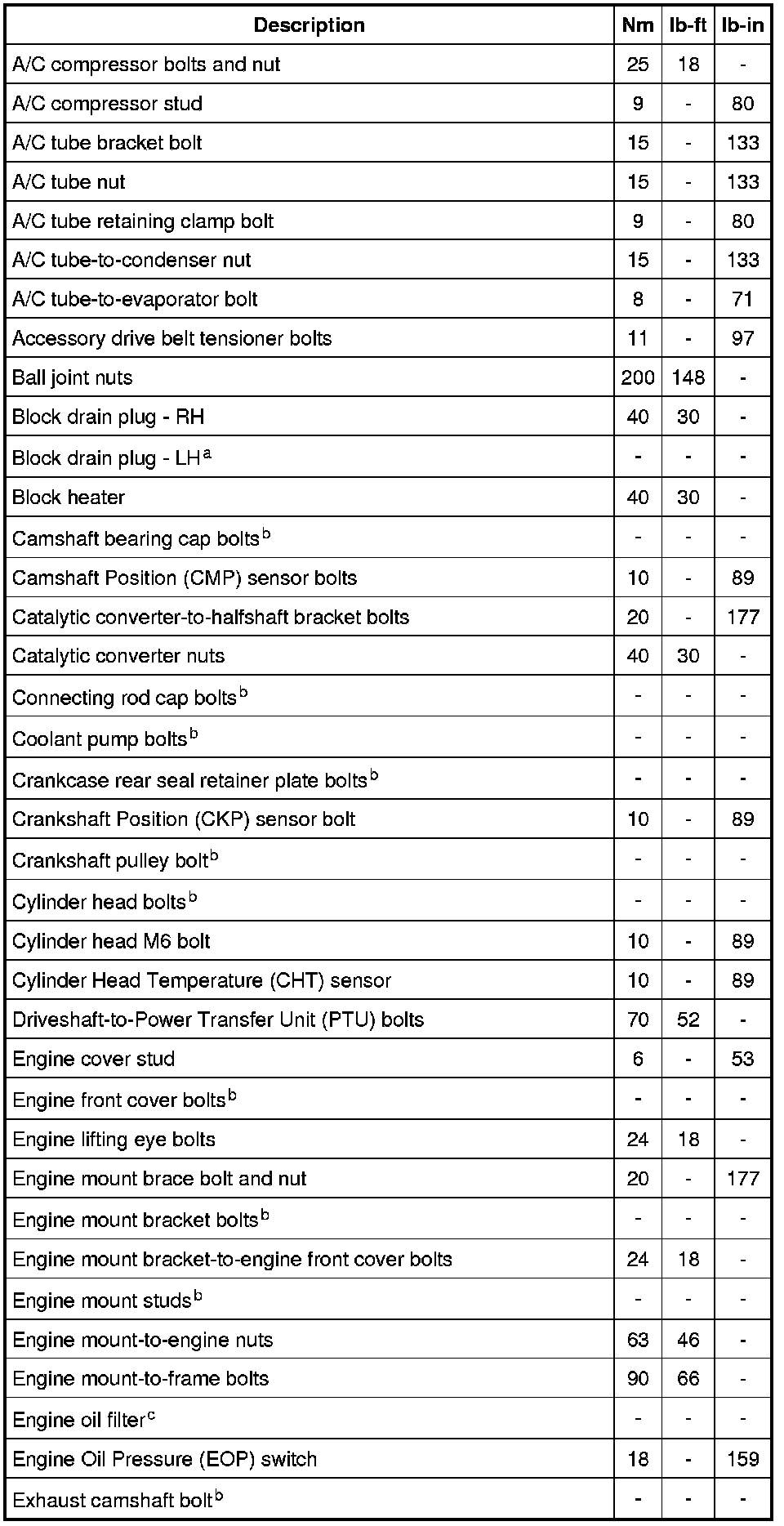

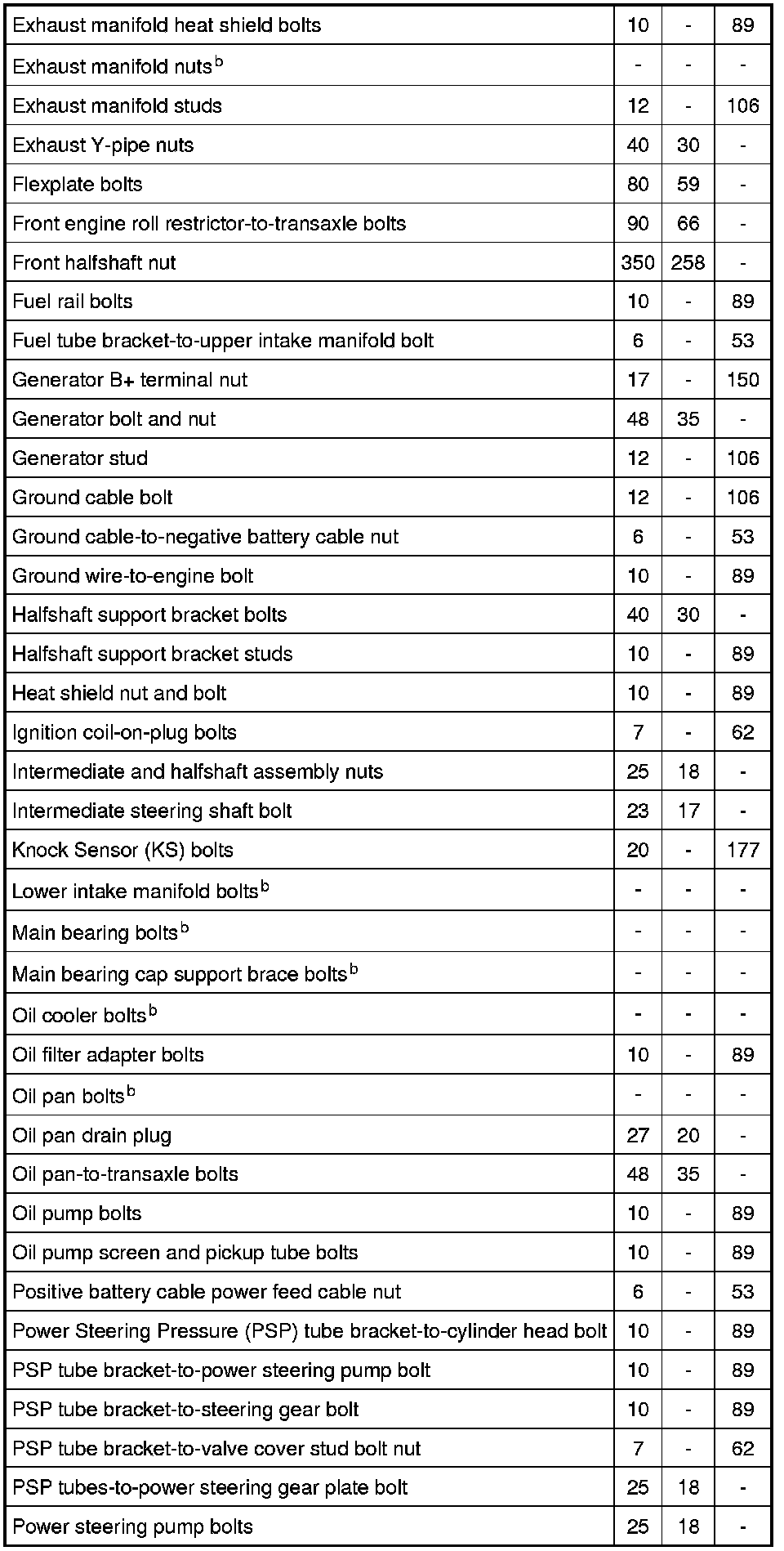

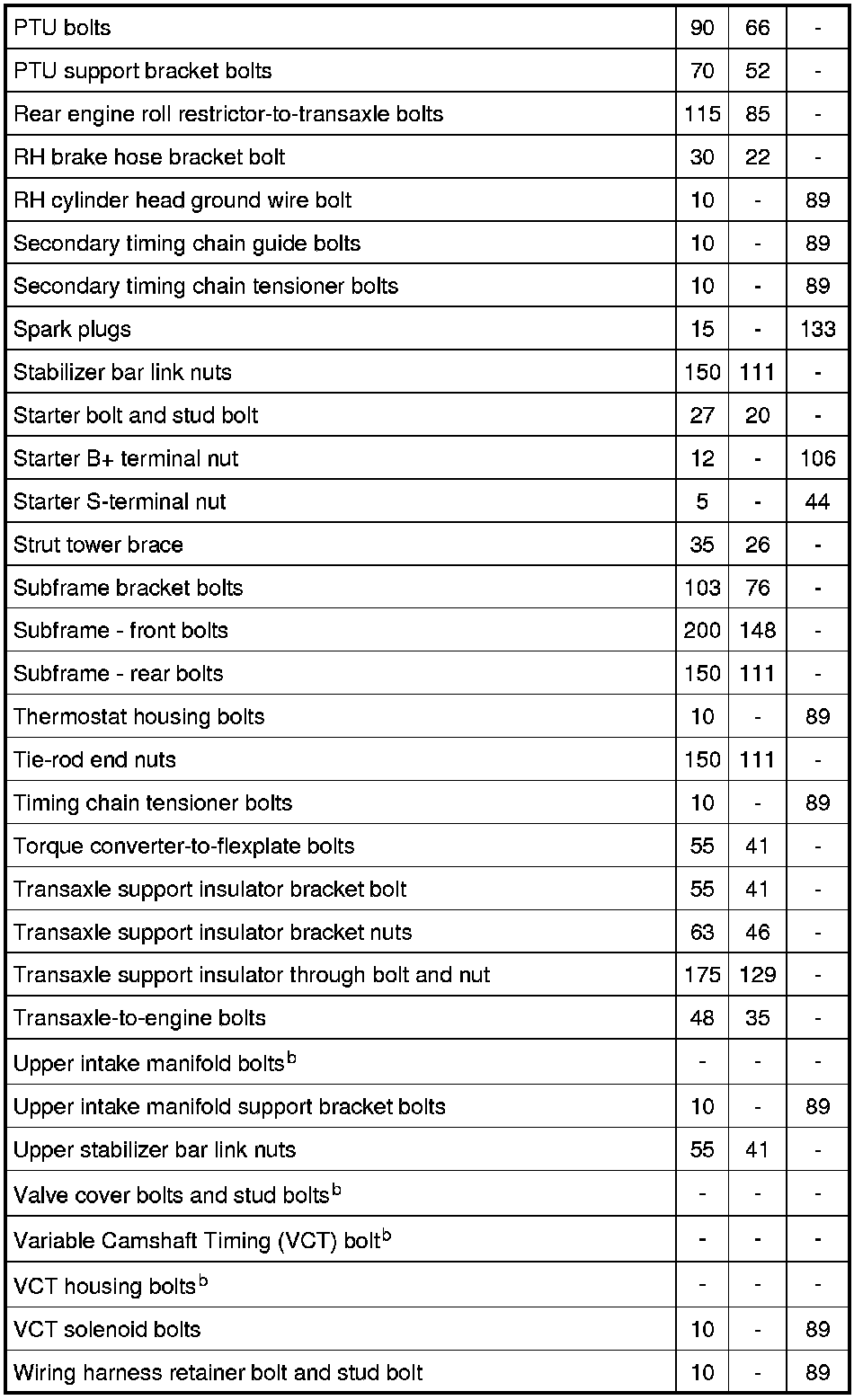

Torque Specifications

Torque Specifications













a Tighten to 20 Nm (177 lb-in) plus an additional 180 degrees.
b Refer to the procedure.
c Tighten to 5 Nm (44 lb-in) plus an additional 180 degrees.
