Steering Column Shroud

Steering Column Shroud

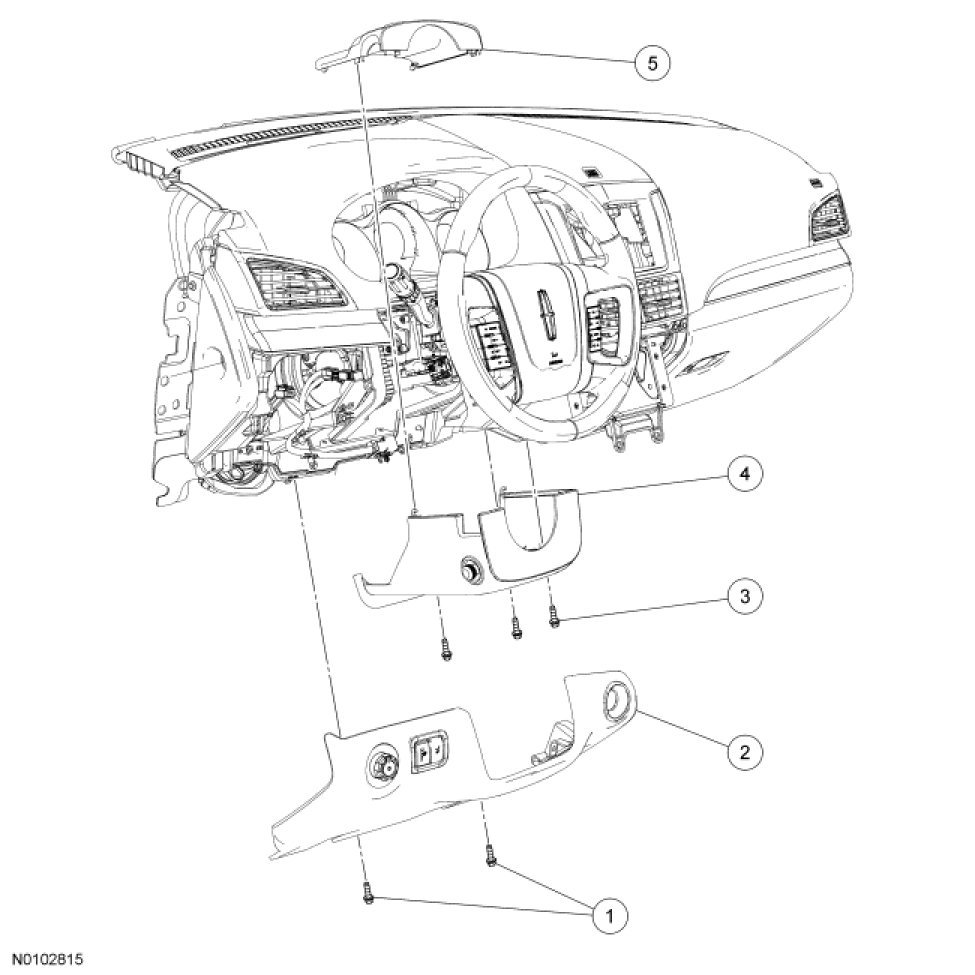

Removal and Installation

1. Remove the steering column opening trim panel. For additional information, refer to the Instrument Panel, Exploded View in Instrument Cluster / Carrier &/or Interior Moulding / Trim.

2. Remove the 3 screws from the lower steering column shroud.

3. Separate and remove the upper steering column shroud from the lower steering column shroud.

4. Remove the lower steering column shroud.
- Disconnect the electrical connector.

5. To install, reverse the removal procedure.
