Stator Support and Gear Assembly

Stator Support and Gear Assembly

Disassembly

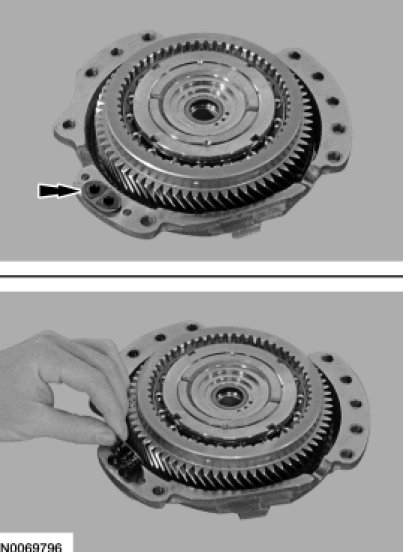

1. Remove and discard the stator support assembly seal.

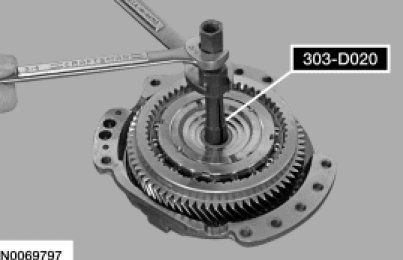

2. Install 7/8 Inch to 1 Inch Collet 303-D020 on the input shaft seal.

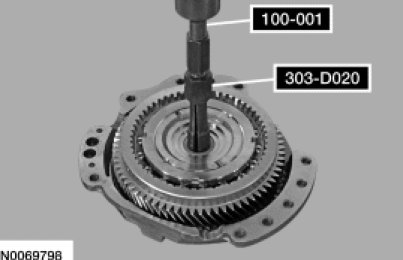

3. Assemble Slide Hammer 100-001 and 7/8 Inch to 1 Inch Collet 303-D020 and remove and discard the input shaft seal.

4. Remove the drive sprocket thrust washer.

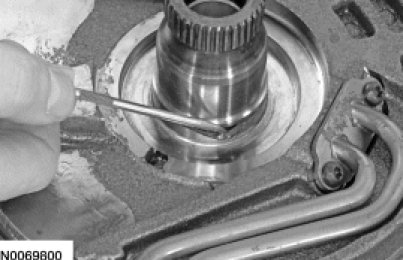

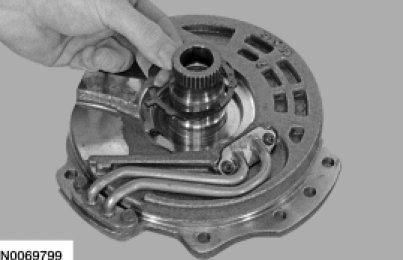

5. Using a suitable tool, remove the stator support-to-torque converter seal.

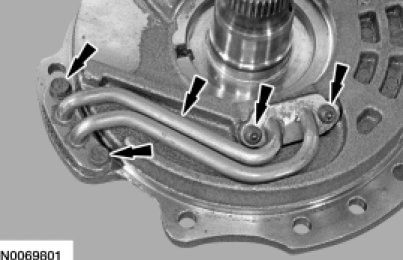

6. NOTE: Note the location of the Torx head and the hex head bolts for assembly.

Remove the 4 bolts and the stator support feed tube.

7. Remove and discard the gasket for the feed tube assembly.

8. Clean and inspect the stator support assembly for damage and install new, if necessary.

Assembly

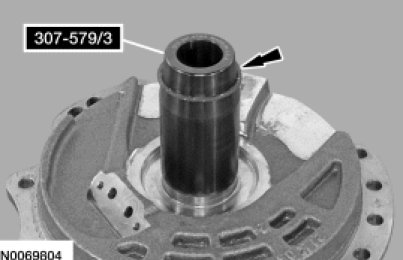

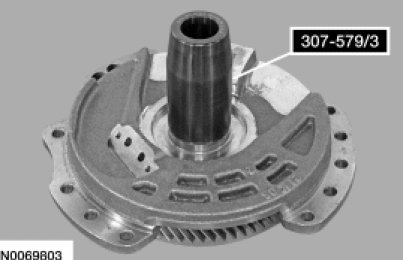

1. Install the Support Solid Seal Installer 307-579/3 on the stator support assembly.

2. Install a new seal on the Support Solid Seal Installer 307-579/3.

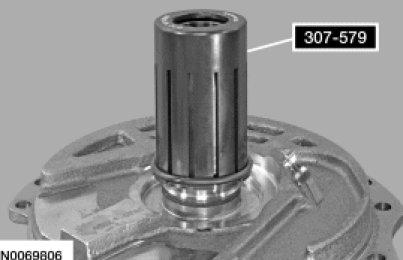

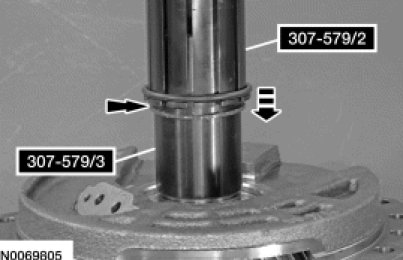

3. Install the Support Solid Seal Installer 307-579/2 on the Support Solid Seal Installer 307-579/3 and slide the seal in to the groove on the stator support assembly.

4. Remove the Support Solid Seal Installer 307-579 (includes 307-579/2 and 307-579/3) from the stator support assembly.

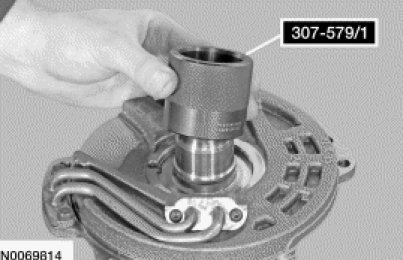

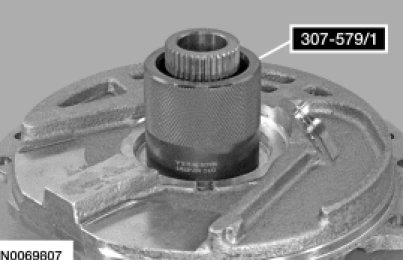

5. Install the Support Solid Seal Installer 307-579/1 on the stator support assembly to size the seal.

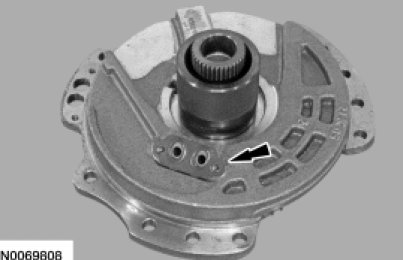

6. Install a new gasket on the stator support assembly.

7. Position the stator support feed tube assembly in place and install the bolts hand-tight.

8. Tighten the 2 stator support feed tube Torx head bolts.
- Tighten to 7 Nm (62 lb-in).

9. Tighten the 2 stator support feed tube hex-head bolts.
- Tighten to 12 Nm (106 lb-in).

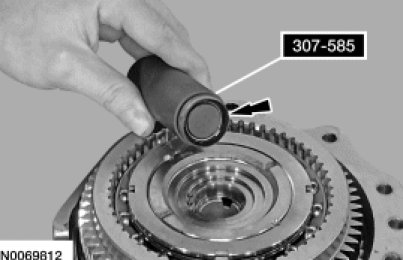

10. Install a new input shaft seal on the Support Seal Installer 307-585.

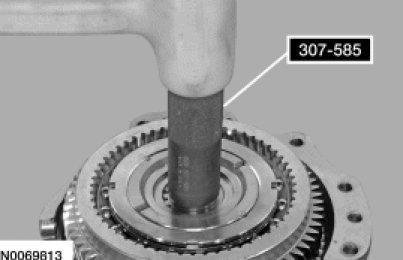

11. Using the Support Seal Installer 307-585, install the input shaft seal.

12. Remove the Support Seal Installer 307-579/1 from the stator support assembly.

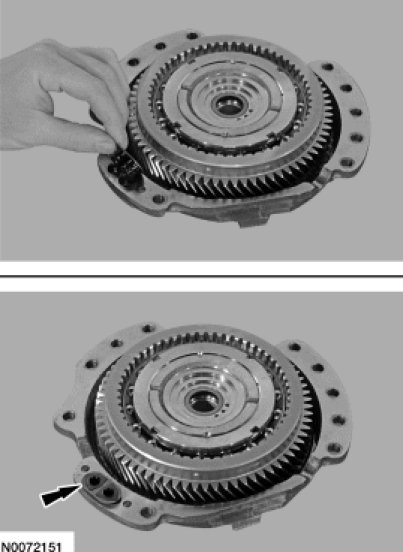

13. Install the drive sprocket thrust washer.

14. Install a new stator support assembly seal.
