Rear Drive Halfshafts

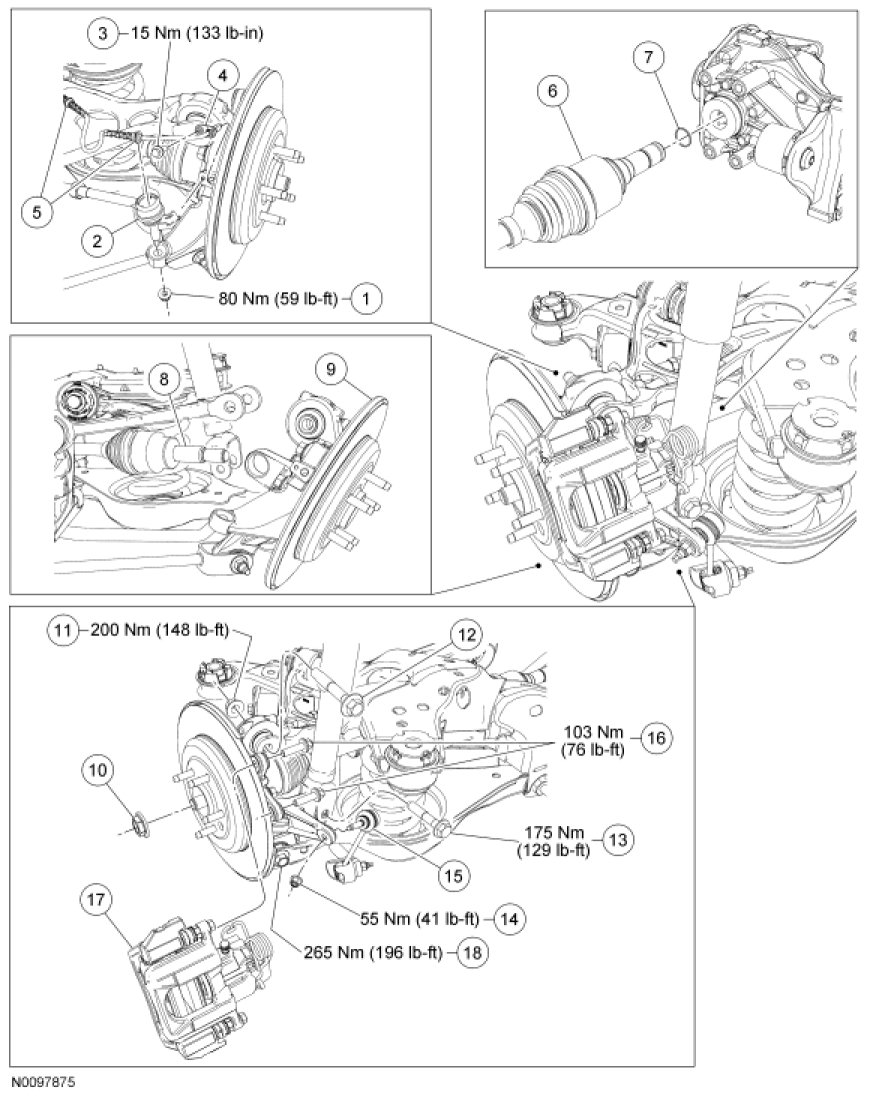

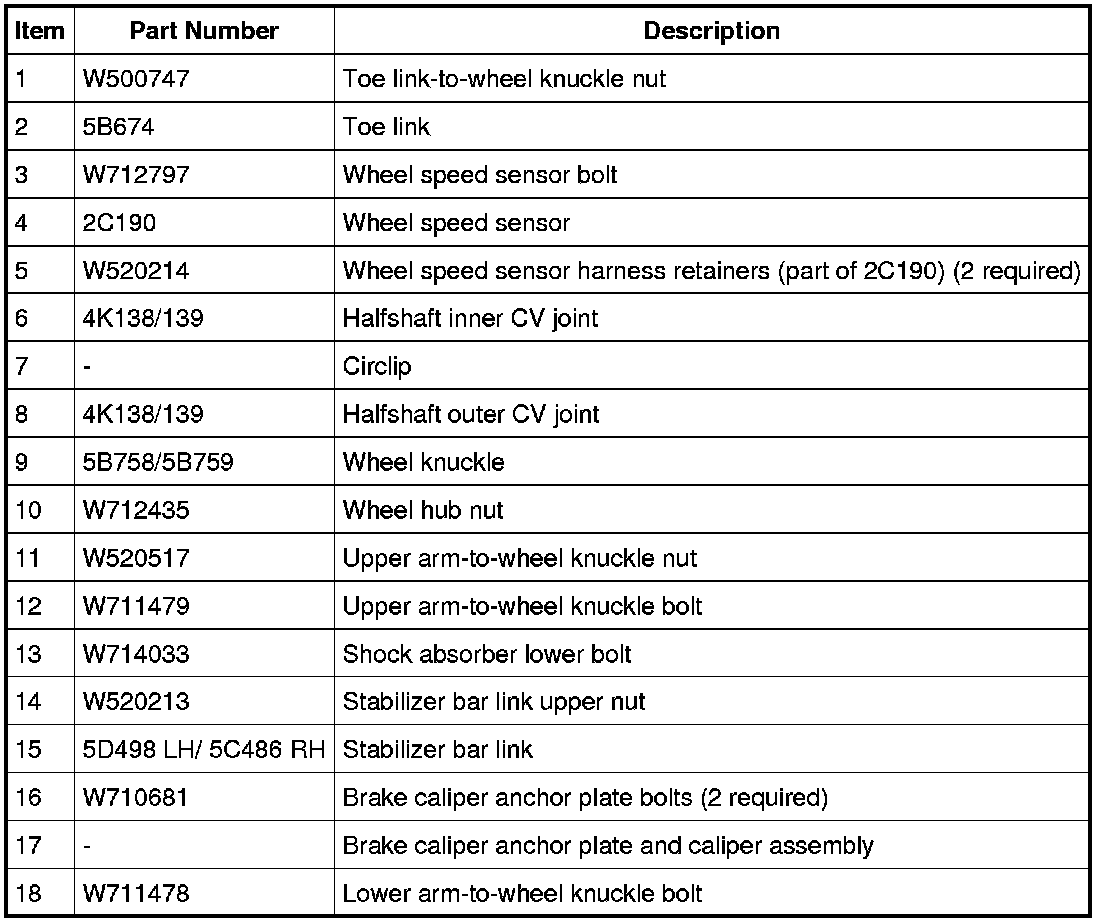

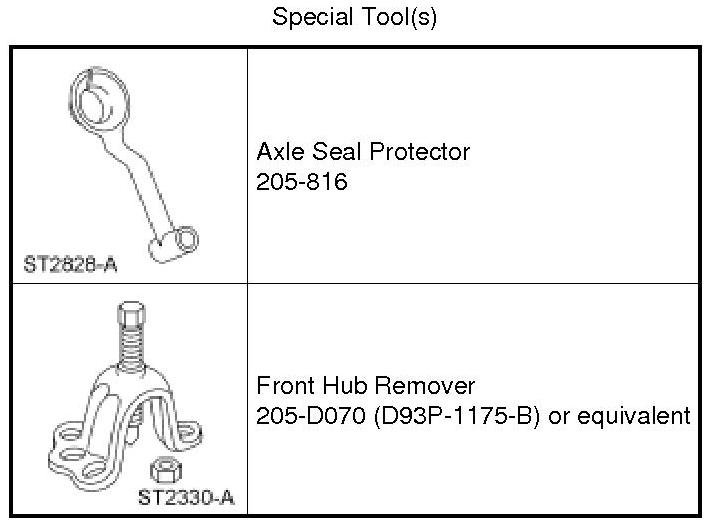

Halfshaft













Removal

NOTICE: Suspension fasteners are critical parts because they affect performance of vital components and systems and their failure may result in major service expense. New parts must be installed with the same part numbers or equivalent part, if replacement is necessary. Do not use a replacement part of lesser quality or substitute design. Torque values must be used as specified during reassembly to make sure of correct retention of these parts.

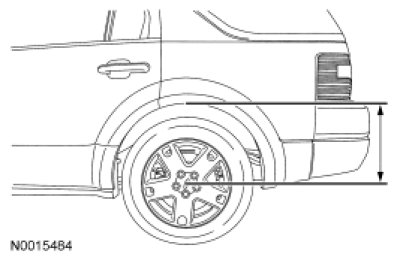

1. Measure the distance from the center of the wheel hub to the lip of the fender with the vehicle in a level, static ground position (curb height).





2. Remove the wheel and tire. For additional information, refer to Wheels and Tires.

3. Remove the wheel hub nut.
- Do not discard at this time.

4. NOTICE: Do not allow the caliper to hang from the brake hose or damage to the hose can occur.

Remove and discard the 2 brake caliper anchor plate bolts and position the brake caliper and anchor plate assembly aside.

- Support the brake caliper and anchor plate assembly using mechanic's wire.

5. NOTE: Use the hex-holding feature to prevent the stabilizer bar link stud from turning while removing or installing the nut.

Remove and discard the stabilizer bar link upper nut and disconnect the link.

6. Remove and discard the toe link-to-wheel knuckle nut and disconnect the link.

7. Remove the wheel speed sensor bolt.
- Disconnect the wheel speed sensor harness retainers and position the sensor and harness aside.

8. Position a screw-type jackstand under the lower arm.

9. Remove and discard the upper arm-to-wheel knuckle nut and bolt and disconnect the knuckle from the upper arm.

10. Remove and discard the shock absorber lower bolt and disconnect the shock absorber from the knuckle bracket.

11. Loosen, but do not remove the lower arm-to-wheel knuckle bolt.

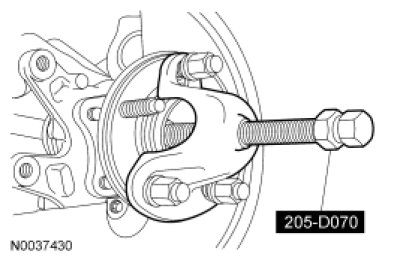

12. Using the Front Hub Remover, separate the halfshaft outer CV joint from the hub bearing.





13. Swing the wheel knuckle outward and remove the halfshaft outer CV joint from the hub bearing.

14. NOTICE: Do not damage the oil seal when removing the axle halfshaft from the differential.

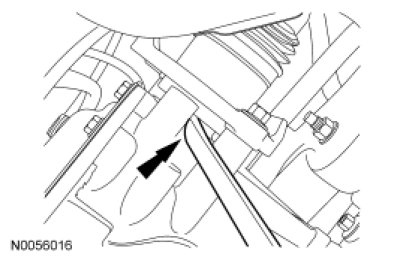

Using a suitable pry bar, remove the halfshaft inner CV joint from the differential.

- Remove the halfshaft from the vehicle.

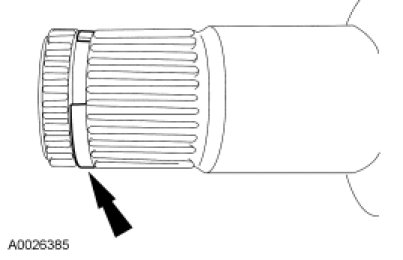

15. Remove and discard the circlip from the halfshaft.





Installation

NOTE: Before tightening suspension bushing fasteners, use a jackstand to raise the rear suspension until the distance between the center of the hub and the lip of the fender is equal to the measurement taken in the removal procedure (curb height).

1. NOTICE: The circlips are unique in size and shape for each shaft. Make sure to use the specified circlip for the application or vehicle damage may occur.

Install a new circlip on the halfshaft.

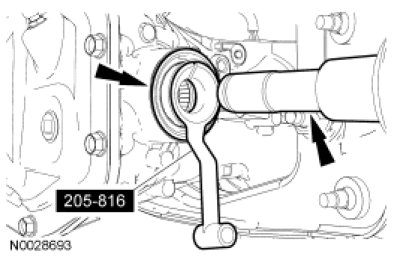

2. Using the Axle Seal Protector, install the halfshaft inner CV joint into the differential.
- Make sure the circlip locks in the side gear.





3. Swing the wheel knuckle inward and install the halfshaft outer CV joint through the hub bearing.

4. Position the wheel knuckle to the upper arm and loosely install a new nut and bolt.

5. Position the shock absorber and loosely install a new bolt.

6. Position the wheel speed sensor harness in the retainers and install the sensor and bolt.
- Tighten to 15 Nm (133 lb-in).

7. Position the toe link and loosely install a new toe link-to-wheel knuckle nut.

8. Position a suitable jackstand under the lower control arm at the shock and spring assembly attachment point and raise the rear suspension until the distance between the center of the hub and the lip of the fender is equal to the measurement taken in Step 1 of the procedure (curb height).

9. NOTE: A slotted upper arm allows for the rear suspension camber to be adjusted by pushing inward or pulling outward on the wheel knuckle while tightening the upper arm-to-wheel knuckle nut.

With the wheel knuckle pushed inward for maximum negative camber, tighten the upper arm-to-wheel knuckle nut to 200 Nm (148 lb-ft).

10. Tighten the lower arm-to-wheel knuckle bolt to 265 Nm (196 lb-ft).

11. Tighten the shock absorber lower bolt to 175 Nm (129 lb-ft).

12. Tighten the toe link-to-wheel knuckle nut to 80 Nm (59 lb-ft).

13. NOTE: Use the hex-holding feature to prevent the stabilizer bar link stud from turning while removing or installing the nut.

Connect the stabilizer bar link and install a new stabilizer bar link upper nut.

- Tighten to 55 Nm (41 lb-ft).

14. Position the brake caliper and anchor plate assembly and install the 2 bolts.
- Tighten to 103 Nm (76 lb-ft).

15. NOTICE: Do not tighten the wheel hub nut with the vehicle on the ground. The nut must be tightened to specification before the vehicle is lowered onto the wheels. Wheel bearing damage will occur if the wheel bearing is loaded with the weight of the vehicle applied.

NOTE: Apply the brake to keep the halfshaft from rotating.

Use the previously removed hub nut to seat the halfshaft.

- Tighten to 350 Nm (258 lb-ft).

- Remove and discard the hub nut.

16. NOTICE: The wheel hub nut contains a one-time locking chemical that is activated by the heat created when it is tightened. Install and tighten the new wheel hub nut to specification within 5 minutes of starting it on the threads. Always install a new wheel hub nut after loosening or when not tightened within the specified time or damage to the components can occur.

NOTE: Apply the brake to keep the halfshaft from rotating.

Install a new hub nut.

- Tighten to 350 Nm (258 lb-ft).

17. Install the wheel and tire. For additional information, refer to Wheels and Tires.

18. Check and if necessary, adjust the rear toe. For additional information, refer to Suspension &/or Alignment.
