Power Mirror Switch: Service and Repair

Exterior Mirror Control Switch

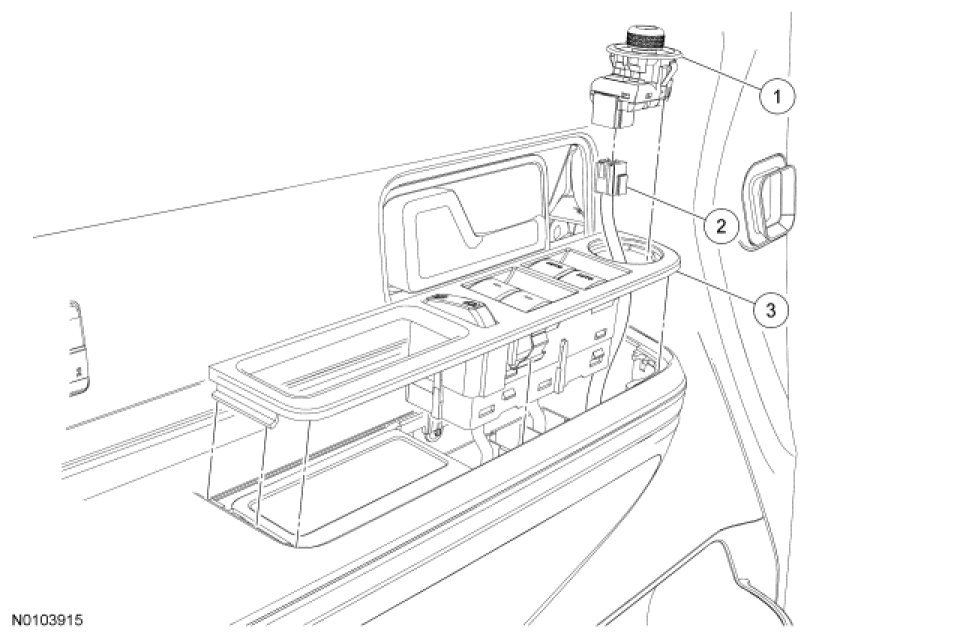

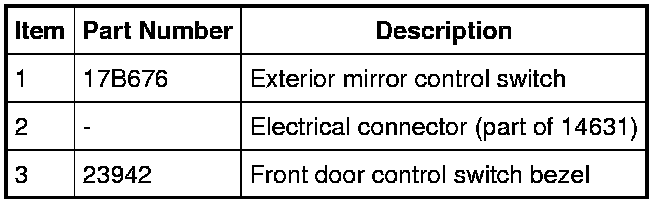

Removal and Installation

1. Remove the front door control switch bezel.

2. Disconnect the exterior mirror control switch electrical connector.

3. Remove the exterior mirror control switch.
- Depress the 2 locking tabs.

4. To install, reverse the removal procedure.
