Memory Set Switch

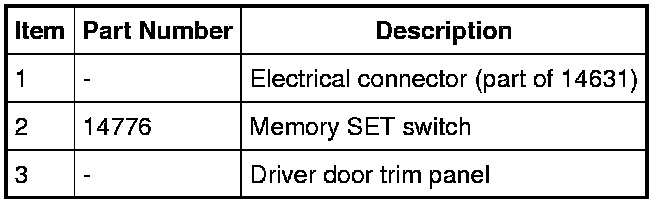

Memory Set SwitchMemory SET Switch, EdgeMemory SET Switch, MKXRemoval and Installation 1.
Remove the driver door trim panel.
2.
Disconnect the electrical connector, release the 4 tabs and remove the memory SET switch.
-

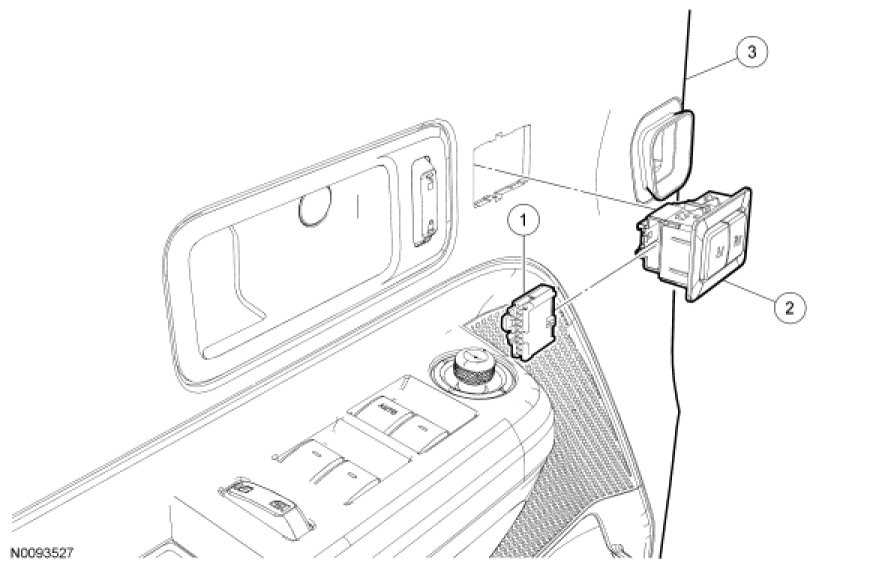

For Edge, remove the switch through the front of the door trim panel.
-

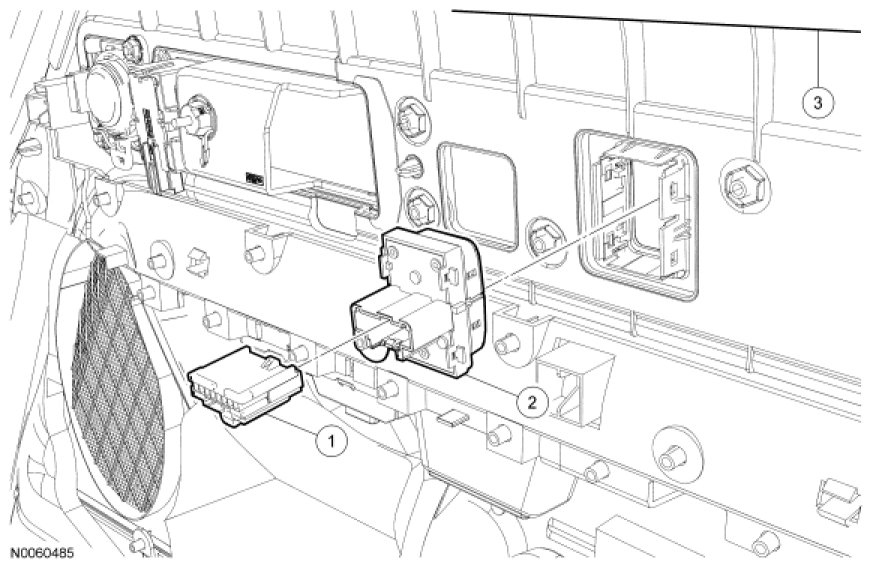

For MKX, remove the switch through the back of the door trim panel.
3.
To install, reverse the removal procedure.
