Electronic Brake Control Module: Service and Repair

Anti-Lock Brake System (ABS) Module













Removal and Installation

NOTICE: Electronic modules are sensitive to electrical charges. The Anti-lock Brake System (ABS) module can be damaged if exposed to these charges.

NOTICE: Do not allow any brake fluid or foreign material to enter the mating side of the Anti-lock Brake System (ABS) module or damage to the solenoids can occur.

1. Remove the Hydraulic Control Unit (HCU). For additional information, refer to Hydraulic Control Unit (HCU) Service and Repair.

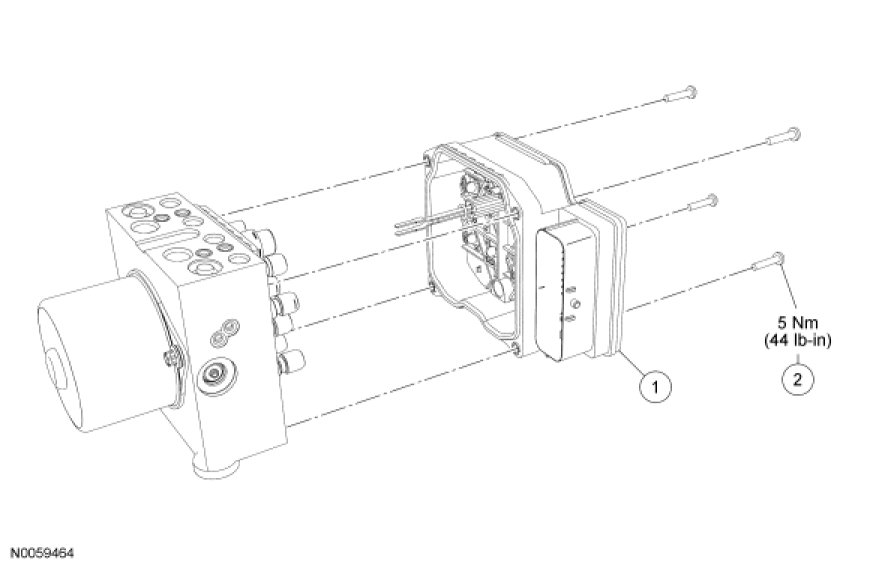

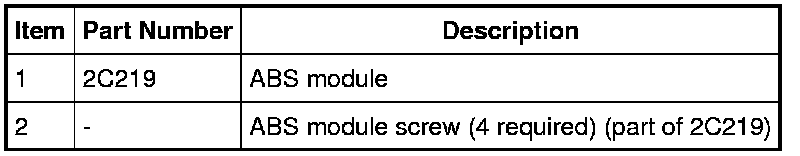

2. Remove the 4 ABS module screws and the ABS module.
- To install, tighten to 5 Nm (44 lb-in).

3. NOTE: Visually inspect the ABS module terminals for damage before installation.

To install, reverse the removal procedure.

- Carry out the IVD Initialization sequence. Follow the scan tool directions.
