Cruise Control Switch: Service and Repair

Cruise Control Switch

Edge

MKX

Removal and Installation

MKX

1. Remove the driver air bag module. For additional information, refer to Restraint Systems.

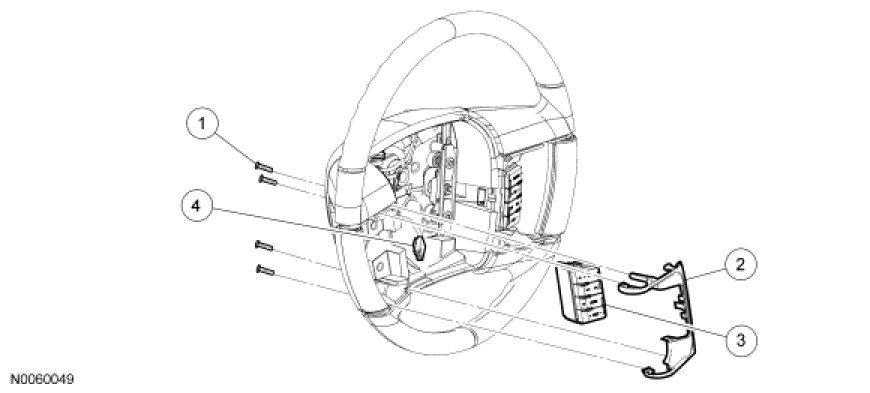

2. Remove the 4 screws and the steering wheel controls bezel.

All vehicles

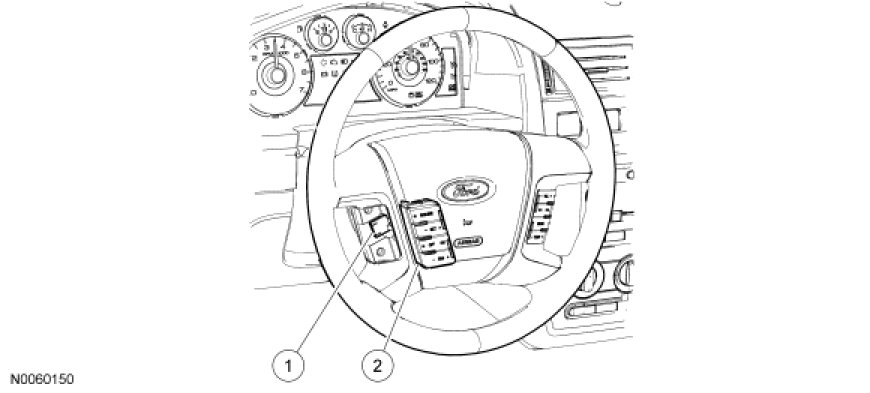

3. Remove the cruise control switch by pulling the switch toward the rear of the vehicle.
- Disconnect the electrical connector.

4. To install, reverse the removal procedure.
