Exhaust System

Exhaust System - Exploded View

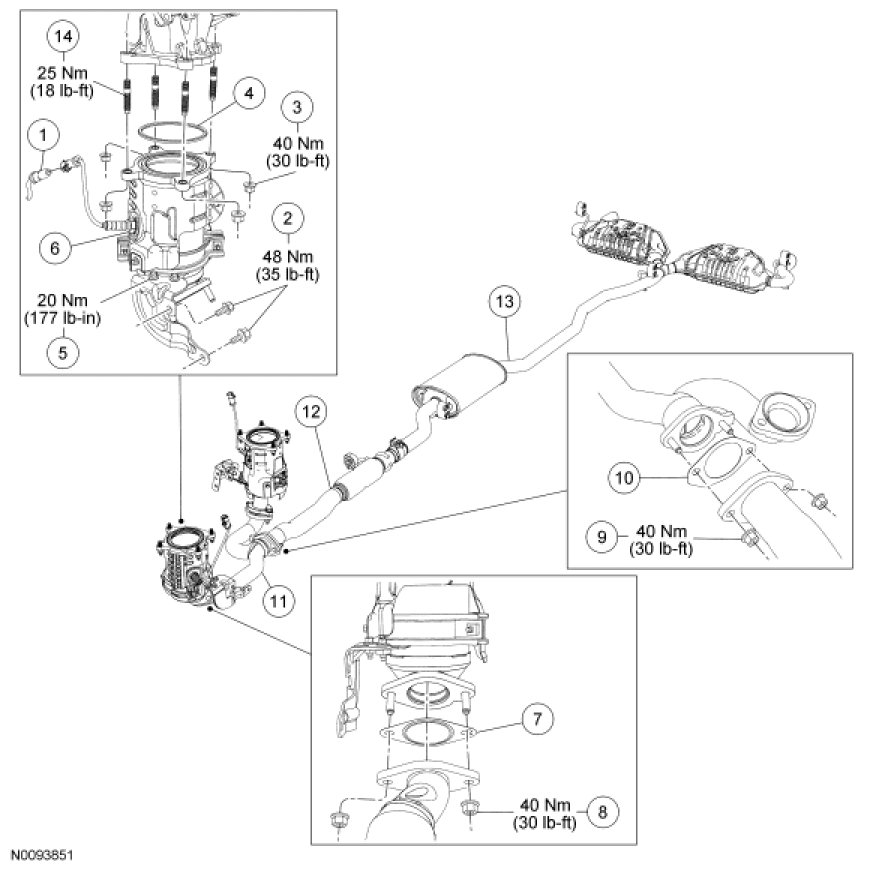

LH Catalytic Converter and Y-Pipe

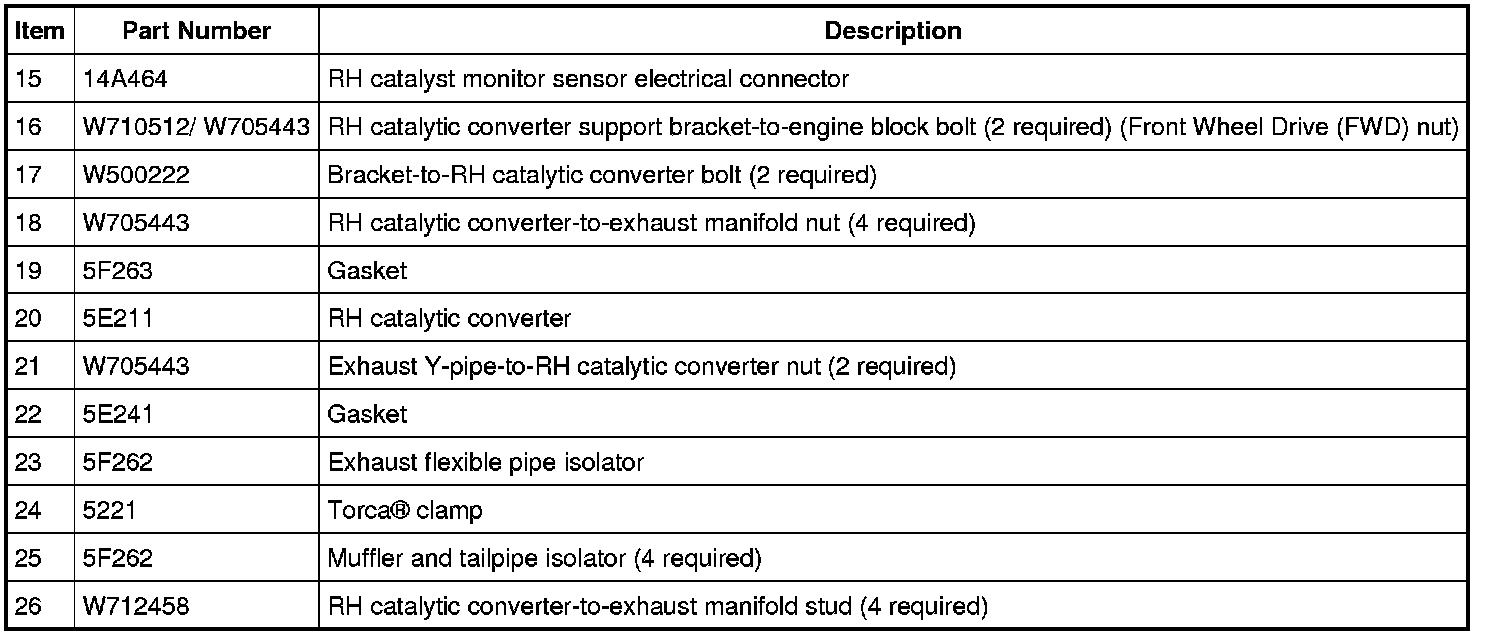

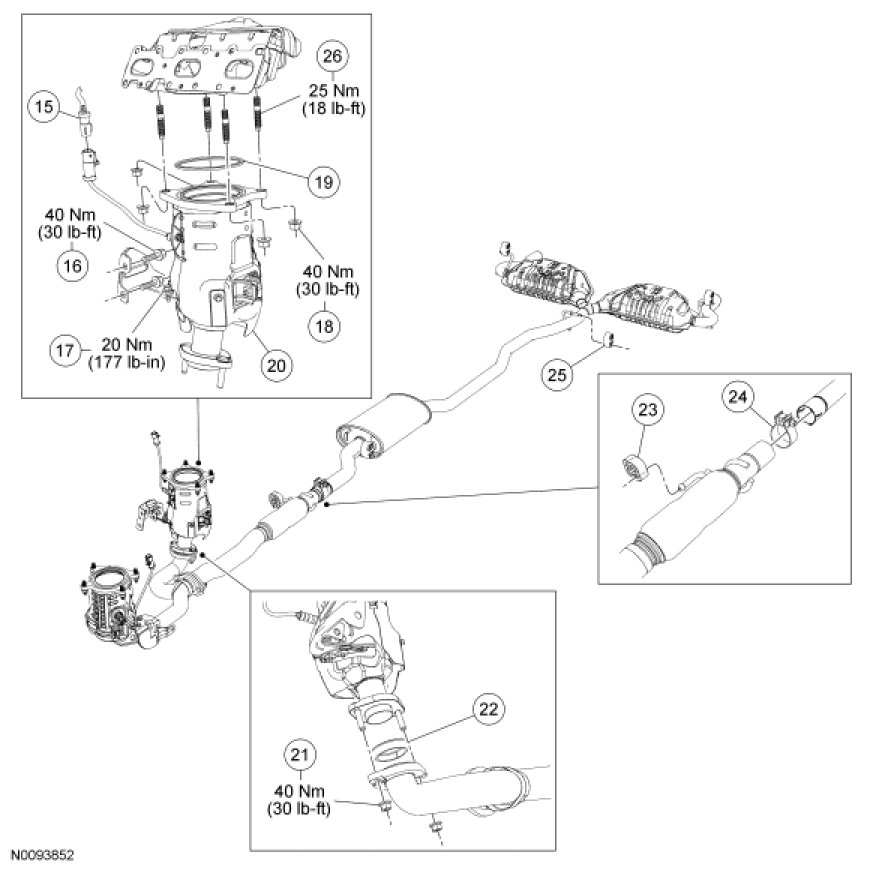

RH Catalytic Converter and Exhaust Flexible Pipe

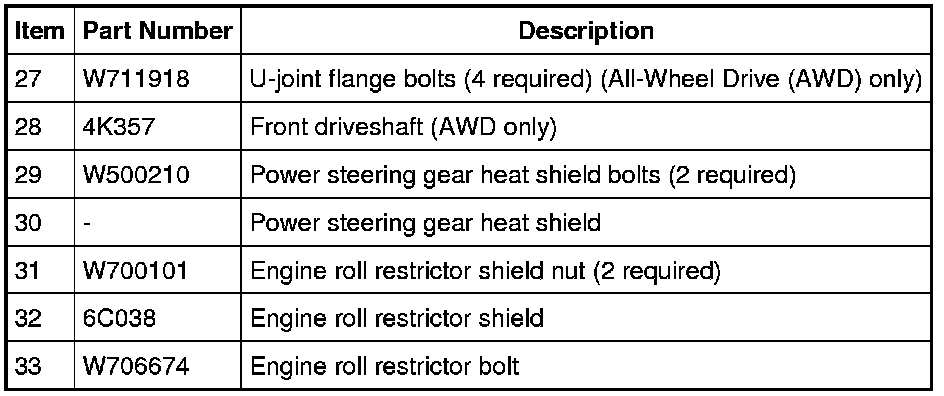

Engine Roll Restrictor, Heat Shield and Driveshaft
