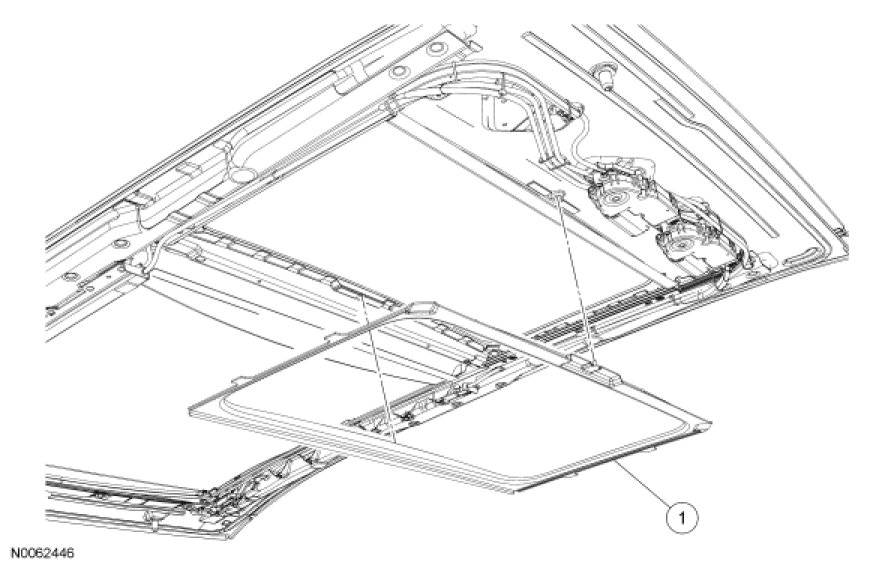

Sunroof / Moonroof Frame

Roof Opening Panel - Exploded View

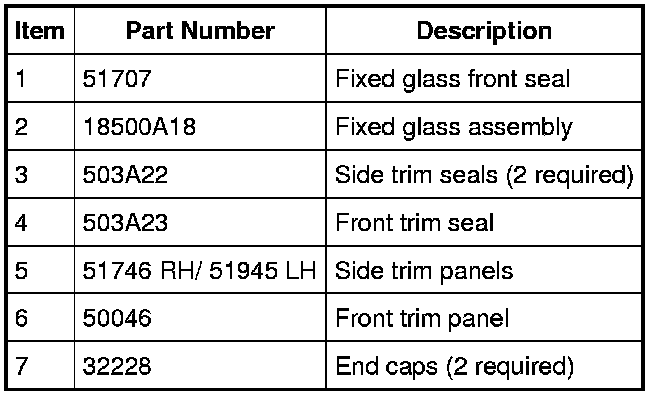

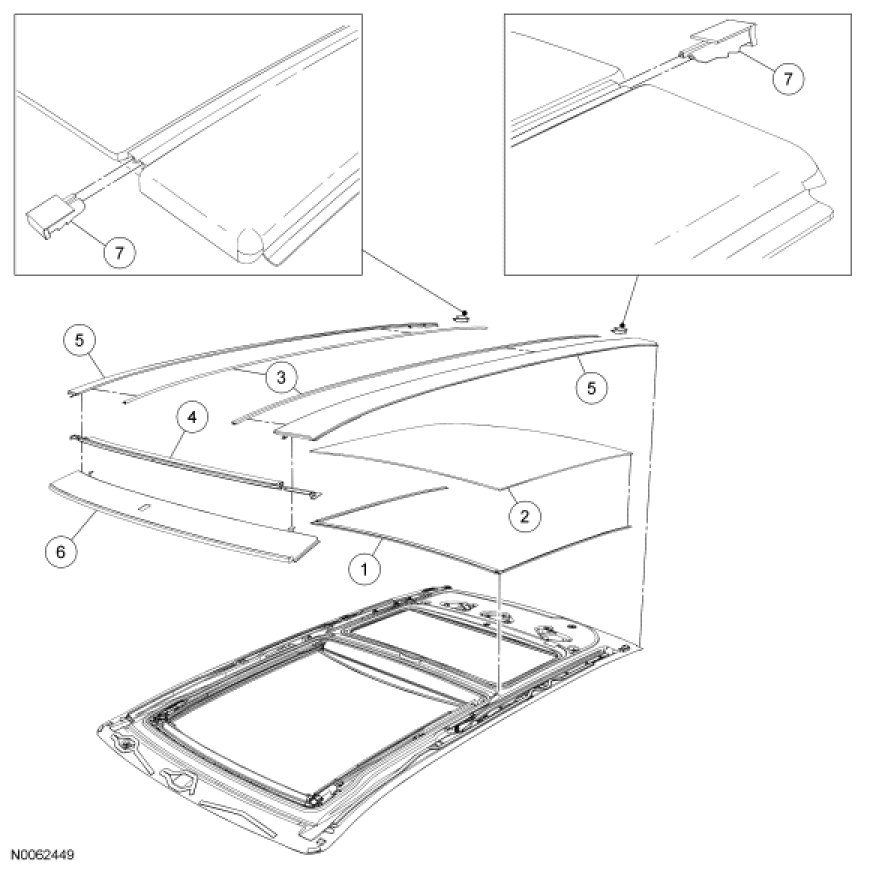

Exterior Trim, Seals, Fixed Glass and End Caps

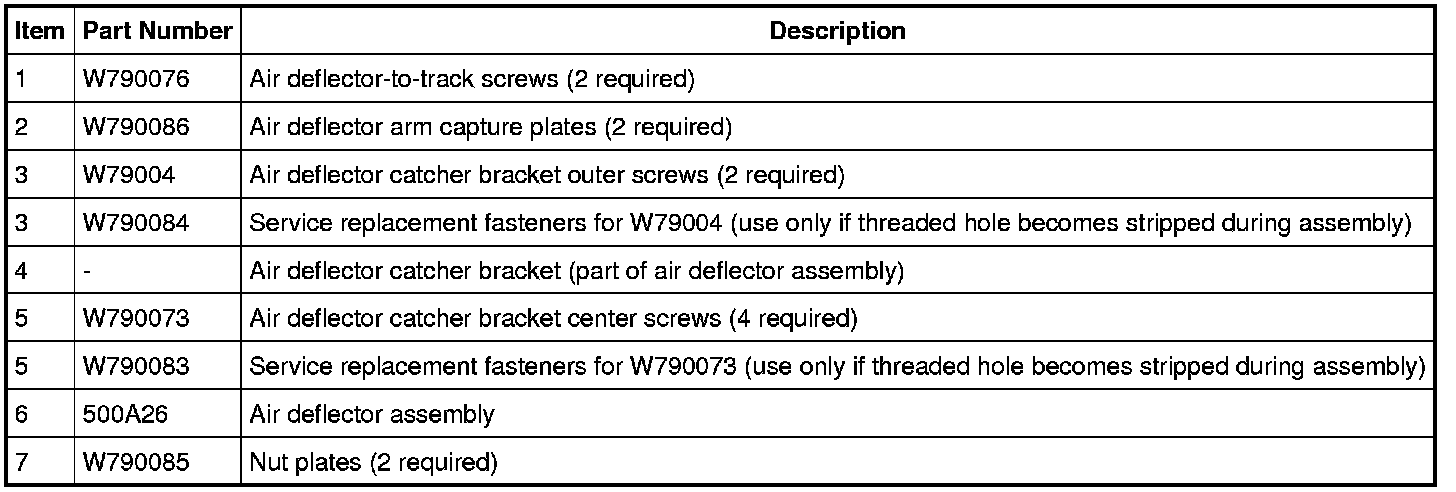

Air Deflector Assembly

Sliding Glass, Blinds and Primary Seal

NOTE: LH side shown, RH side similar.

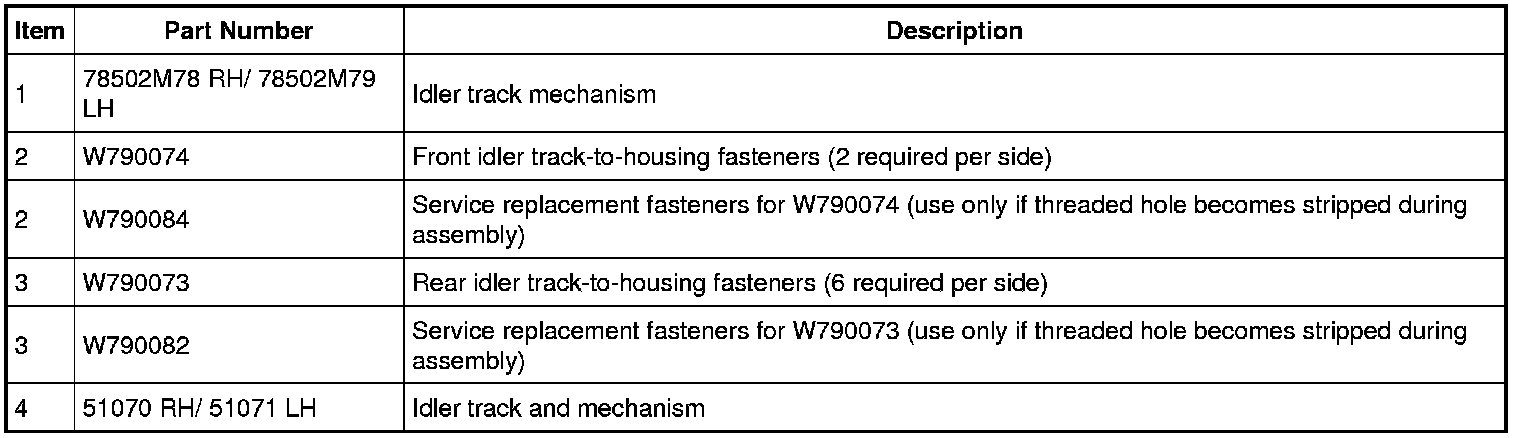

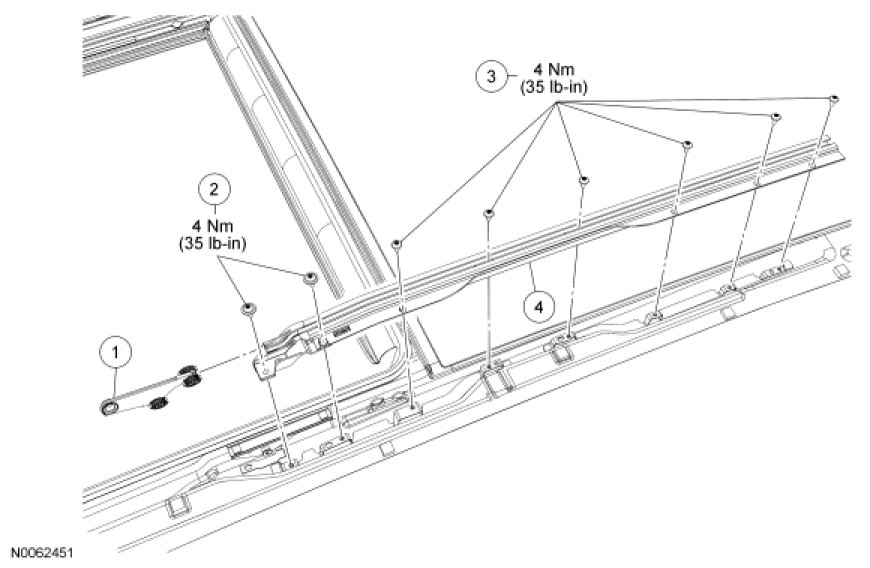

Idler Track and Mechanism

NOTE: LH shown, RH similar.

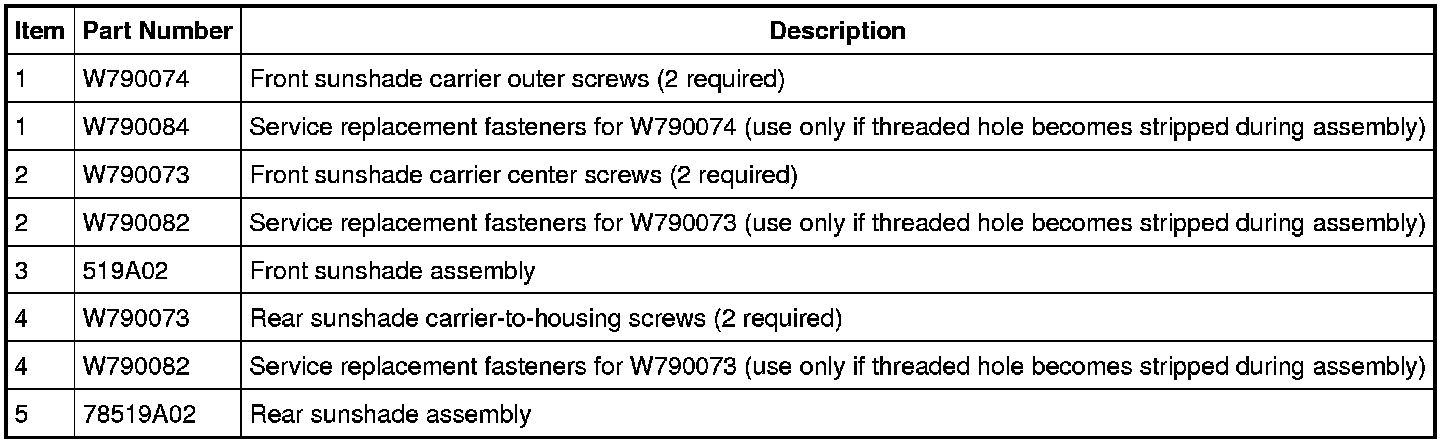

Front and Rear Sunshade Assembly

NOTE: Early build motors shown, late build motors similar.

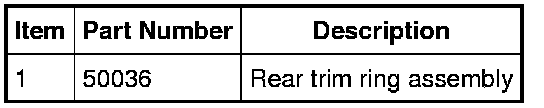

Rear Trim Ring Assembly

NOTE: Early build motors shown, late build motors similar.

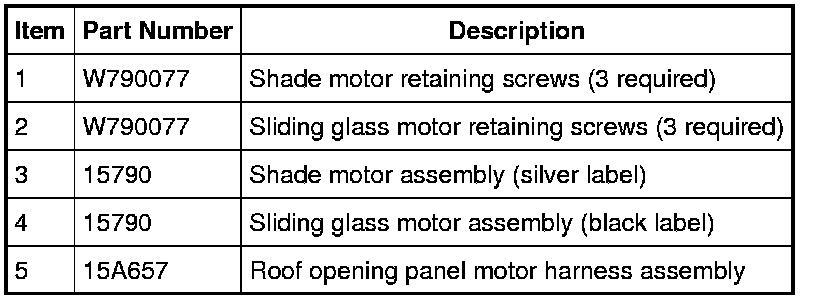

Roof Opening Panel Motor(s) and Electrical

NOTE: Early build motors shown, late build motors similar.

Motor Block and Drive Tube Assembly

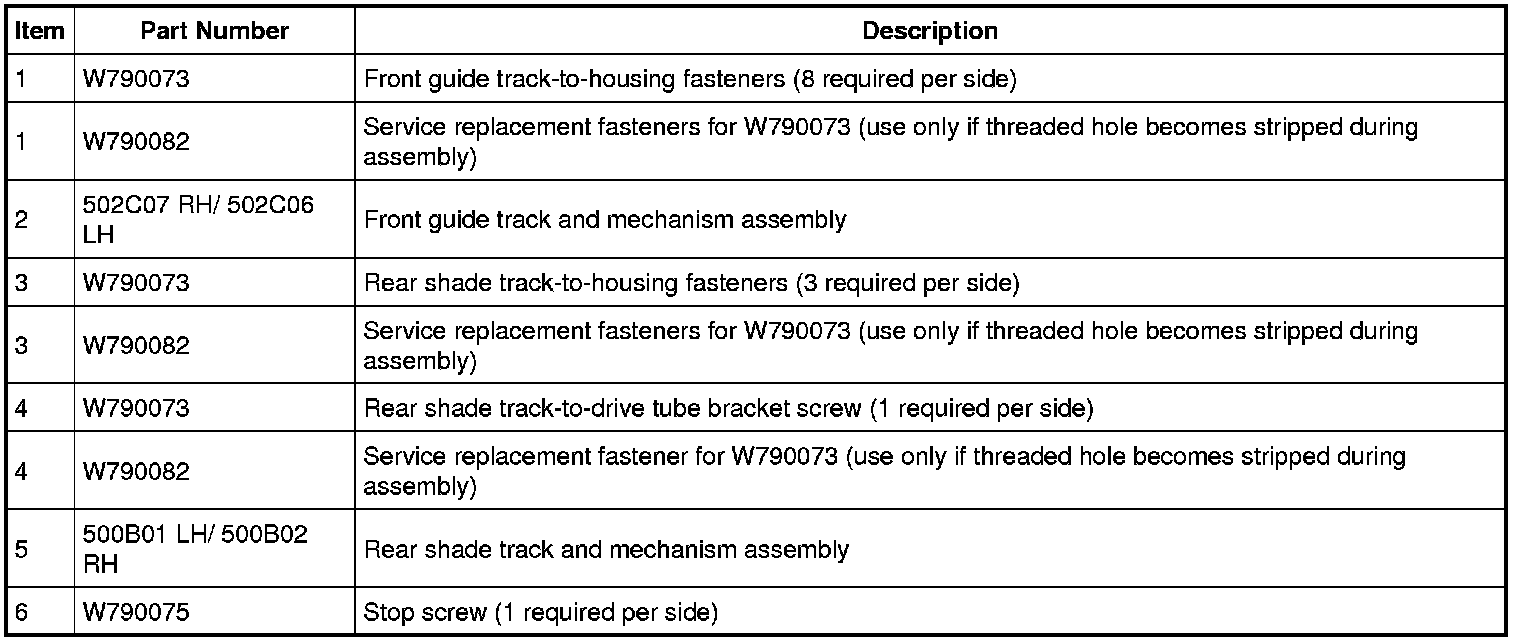

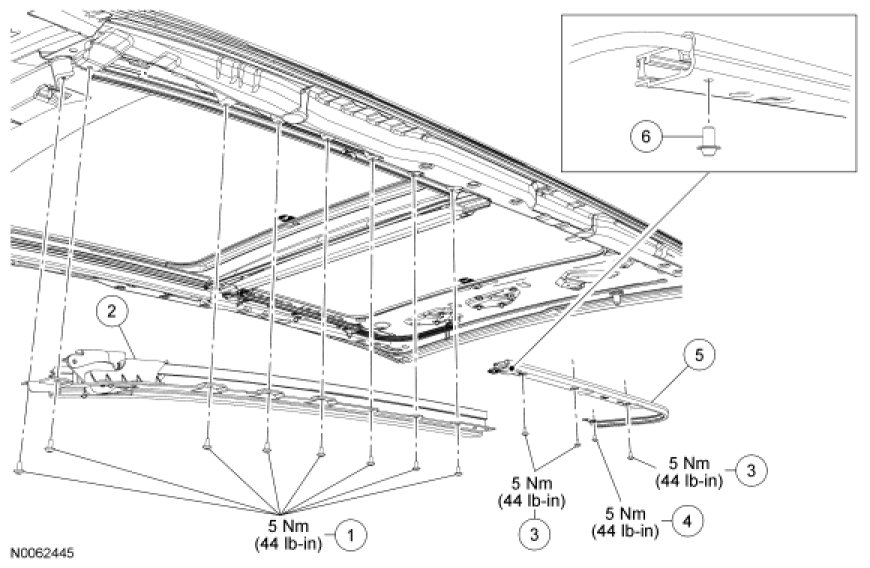

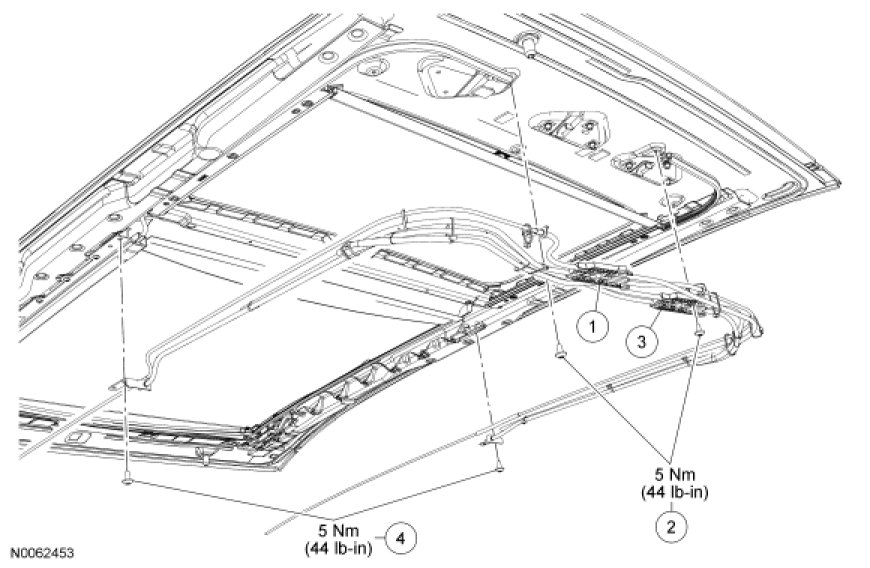

Guide Tracks and Mechanisms

NOTE: LH shown, RH similar.

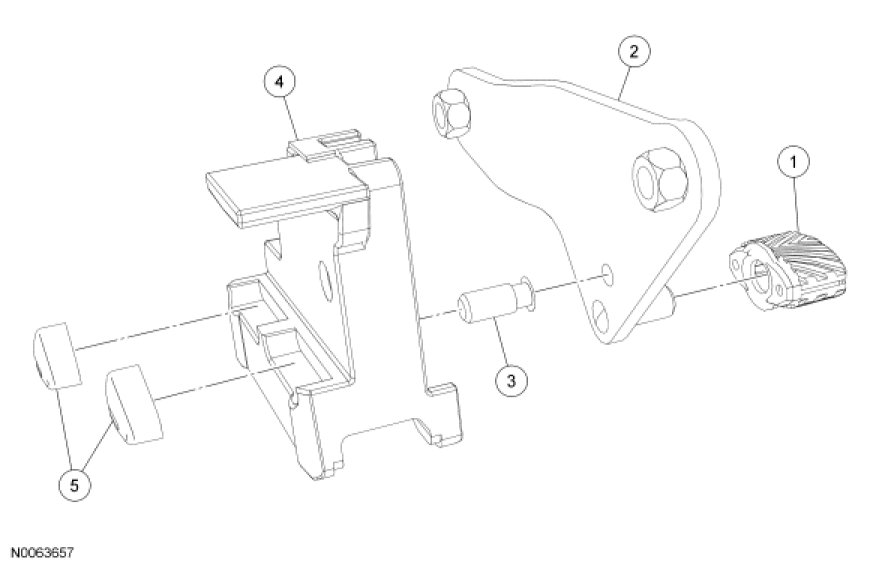

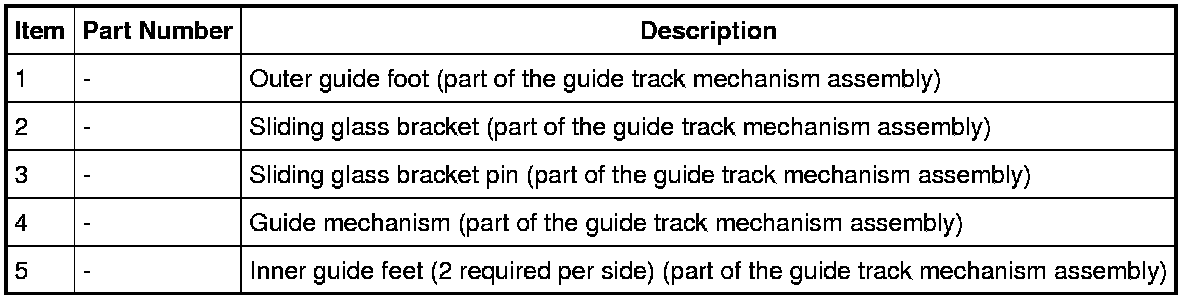

Front Guide Track Mechanism

NOTE: LH shown, RH similar.

1. For additional information, refer to the individual procedures.
