Register - Driver Side

Register - Driver Side, MKX









Removal and Installation

1. Remove the instrument cluster finish panel. For additional information, refer to Instrument Cluster / Carrier &/or Interior Moulding / Trim.

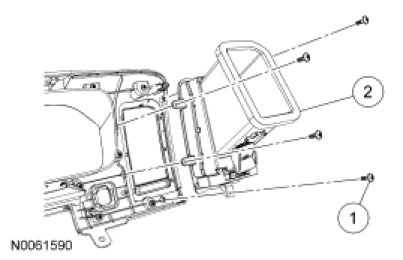

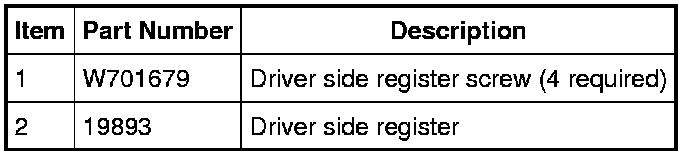

2. Remove the 4 driver side register screws and the driver side register.

3. To install, reverse the removal procedure.
