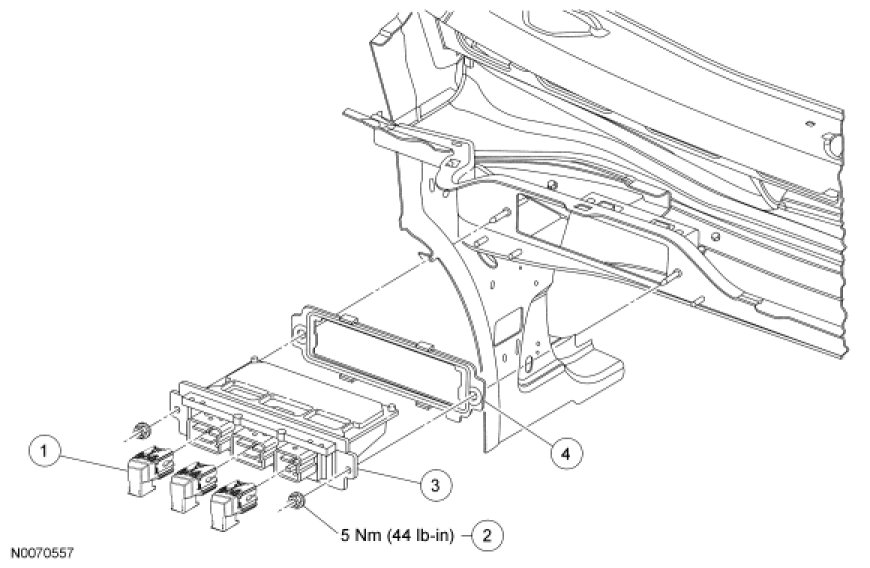

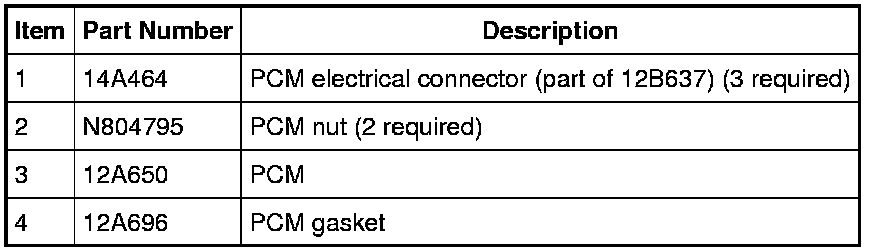

Engine Control Module: Service and Repair




Powertrain Control Module (PCM)









Removal

1. NOTE: PCM replacement DOES NOT require new keys or programming of keys.

Retrieve the module configuration. Carry out the module configuration retrieval steps of the Programmable Module Installation (PMI) procedure. For additional information, refer to Information Bus. Programming and Relearning

2. Disconnect the 3 PCM electrical connectors.

3. Remove the 2 nuts and the PCM.
- Remove the gasket.

Installation

1. Install the gasket and the PCM.

2. Install the 2 PCM nuts.
- Tighten to 5 Nm (44 lb-in).

3. Connect the 3 PCM electrical connectors.

4. Restore the module configuration. Carry out the module configuration restore steps of the Programmable Module Installation (PMI) procedure. For additional information, refer to Information Bus. Programming and Relearning

5. Reprogram the Passive Anti-Theft System (PATS). Carry out the Parameter Reset procedure. For additional information, refer to Antitheft and Alarm Systems. Passive Anti-Theft System (PATS) Parameter Reset
