Audio Control Module (ACM)

Audio Control Module (ACM)









Removal and Installation

NOTE: It is not necessary to remove the Audio Control Module (ACM) to retrieve the part number. For additional information, refer to Audio Control Module (ACM) Self-Diagnostic Mode Audio Control Module (ACM) Self-Diagnostic Mode.

1. NOTE: Module configuration is required when a new ACM is being installed.

Upload the ACM configuration information to the scan tool. For additional information, refer to Information Bus.

2. Remove the instrument panel center finish panel. For additional information, refer to Instrument Cluster / Carrier &/or Interior Moulding / Trim.

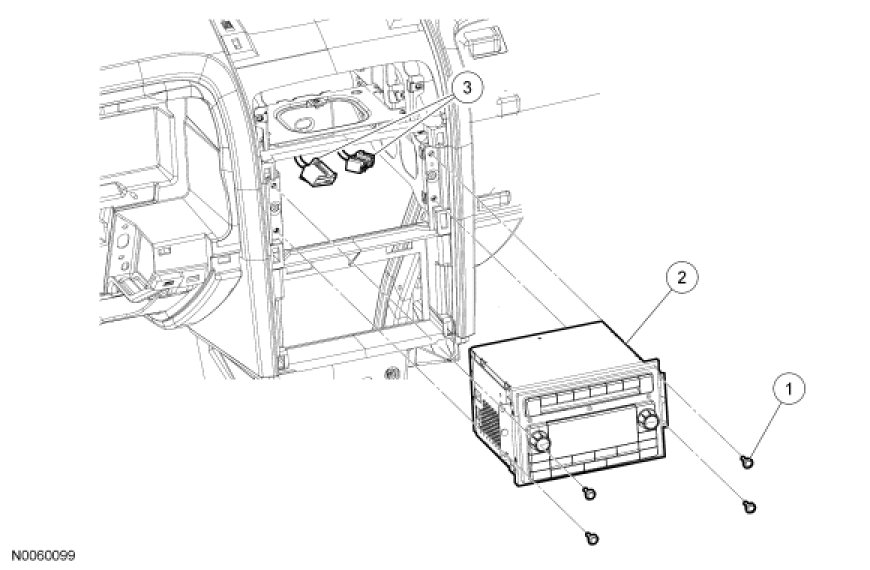

3. Remove the 4 screws and the ACM.
- Disconnect the electrical connectors and the antenna cable.

4. To install, reverse the removal procedure.
- Download the configuration information to the ACM. For additional information, refer to Information Bus.
