Audio Digital Signal Processing (DSP) Module




Audio Digital Signal Processing (DSP) Module









Removal and Installation

1. NOTE: Module configuration is required when a new audio Digital Signal Processing (DSP) module is being installed.

Upload the audio DSP module configuration information to the scan tool. For additional information, refer to Programmable Module Installation (PMI) in Information Bus. Programming and Relearning

2. Remove the subwoofer speaker. For additional information, refer to Speaker - Subwoofer Speaker - Subwoofer.

3. Disconnect the audio DSP module electrical connectors.

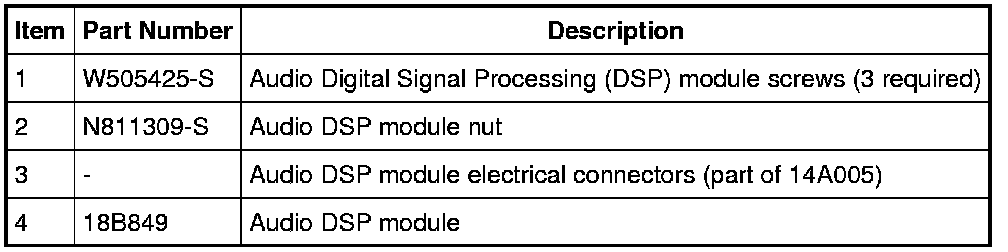

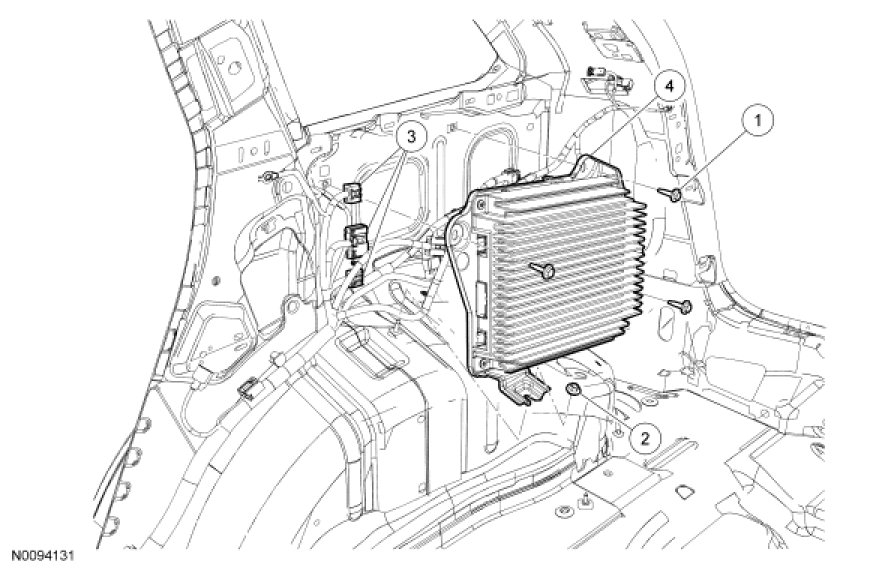

4. Remove the 3 screws, the nut, and the audio DSP module.

5. To install, reverse the removal procedure.
- Download the configuration information to the audio DSP module. For additional information, refer to PMI in Information Bus. Programming and Relearning
