Headlamp Control Module: Service and Repair

Headlamp Control Module (HCM)

NOTE: The Headlamp Control Module (HCM) can be accessed from under the vehicle.










Removal and Installation

1. With the vehicle in NEUTRAL, position it on a hoist. For additional information, refer to Vehicle Jacking and Lifting.

2. Remove the 2 screws and position the fender splash shield aside.

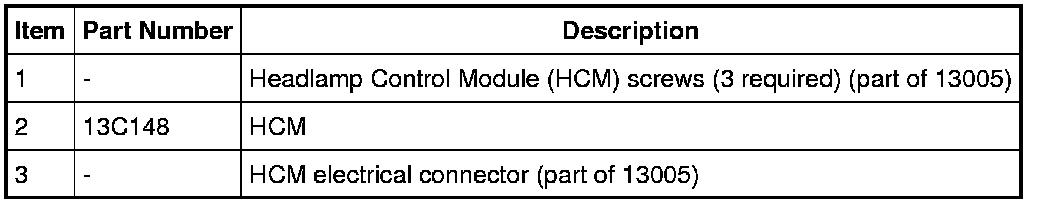

3. Remove the 3 screws and the HCM.
- Disconnect the electrical connector.

4. To install, reverse the removal procedure.
