Restraints Control Module (RCM)
Air Bag and Safety Belt Pretensioner Supplemental Restraint System (SRS)DTC ChartsThe DTCs can be retrieved from the RCM and the OCSM with a scan tool via the DLC.

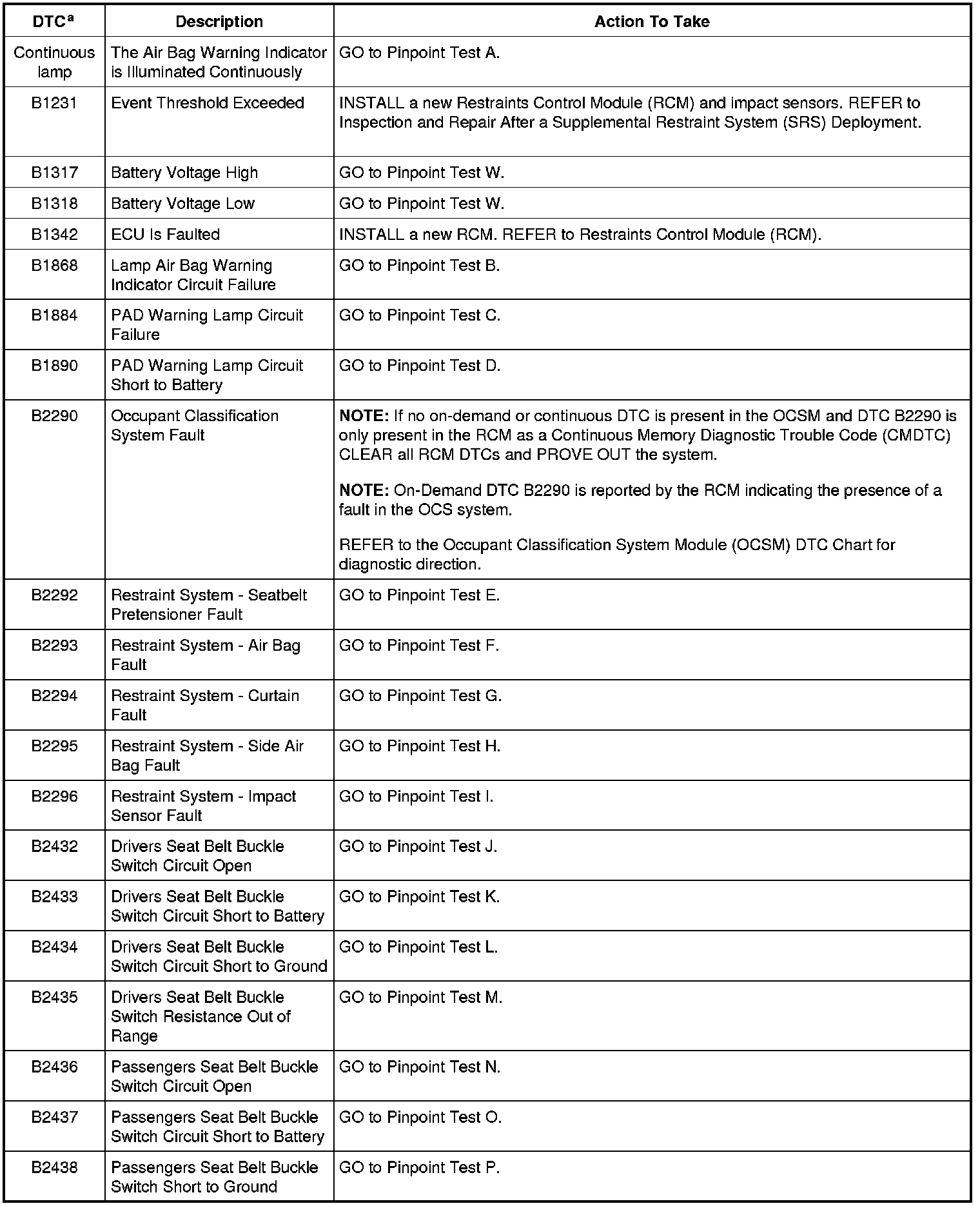

Restraints Control Module (RCM) DTC Chart a
DTC: Retrieved using scan tool.
