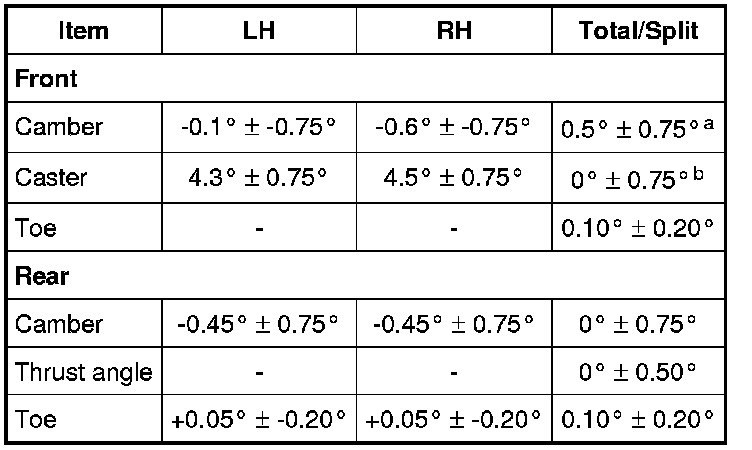

Alignment Specifications




Alignment Specifications





a Camber Total/Split = LH Camber - RH Camber

b Caster Total/Split = LH Caster - RH Caster
