Control Assembly: Service and Repair




Heating Ventilation Air Conditioning (HVAC) Module

Removal and Installation

NOTE: If installing a new HVAC module, the new module must be configured for the vehicle. For additional information, refer to Information Bus.

1. Remove the instrument cluster finish panel. For additional information, refer to Instrument Cluster / Carrier &/or Interior Moulding / Trim.

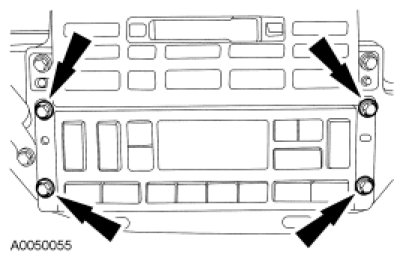

2. Remove the 4 HVAC module screws.





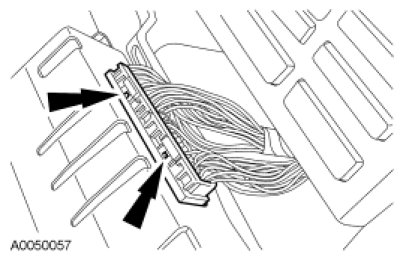

3. Disconnect the 2 HVAC module electrical connectors and remove the HVAC module.





4. To install, reverse the removal procedure.
