Alternator: Service and Repair

Generator









Removal and Installation

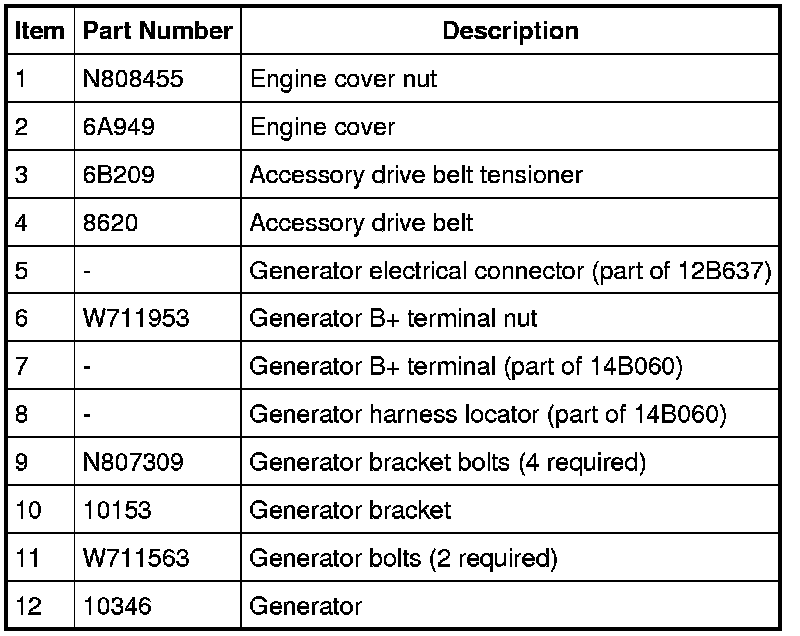

1. Disconnect the battery. For additional information, refer to Battery.

2. Remove the nut and the engine cover.
- To install, tighten to 10 Nm (89 lb-in).

3. Rotate the accessory drive belt tensioner clockwise and position the accessory drive belt aside.

4. Disconnect the generator electrical connector.

5. Remove the nut and position the generator B+ terminal aside.
- To install, tighten to 12 Nm (106 lb-in).

6. Remove the generator harness pushpin from the generator bracket.

7. Remove the 4 bolts and the generator bracket.
- To install, tighten to 10 Nm (89 lb-in).

8. Loosen the 2 bolts and remove the generator.
- To install, tighten to 25 Nm (18 lb-ft).

9. To install, reverse the removal procedure.
