Radiator Grille




Radiator Grille

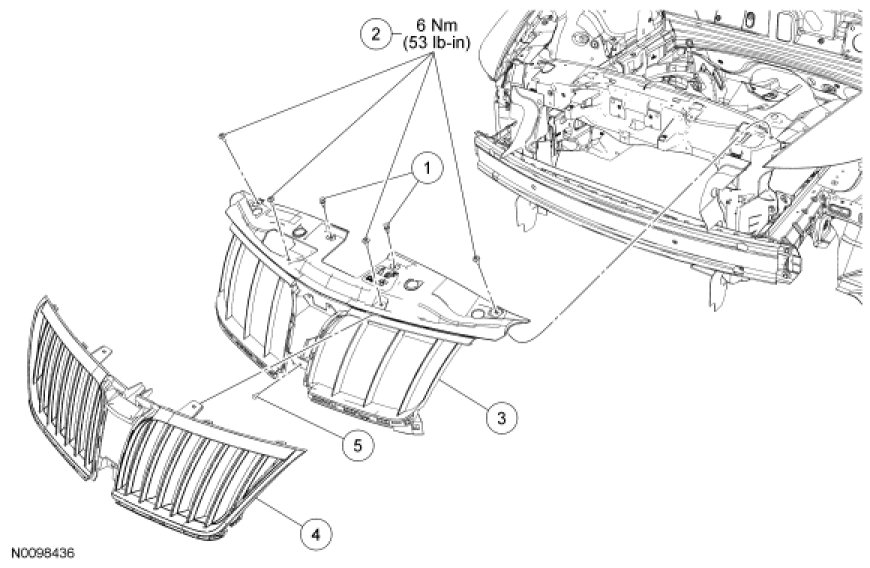

Removal and Installation

1. Remove the front bumper cover. For additional information, refer to Bumpers Service and Repair.

2. Remove the radiator grille reinforcement-to-bumper insulator rivet.

3. Remove the radiator grille opening panel assembly.
- Pull outward to reposition the parking aid sensor wiring harness.

4. Pull outward to release the radiator grille opening panel from the radiator grille opening panel reinforcement.

5. To install, reverse the removal procedure.
