Air Distribution and Filtering - Exploded View

Air Distribution and Filtering - Exploded View

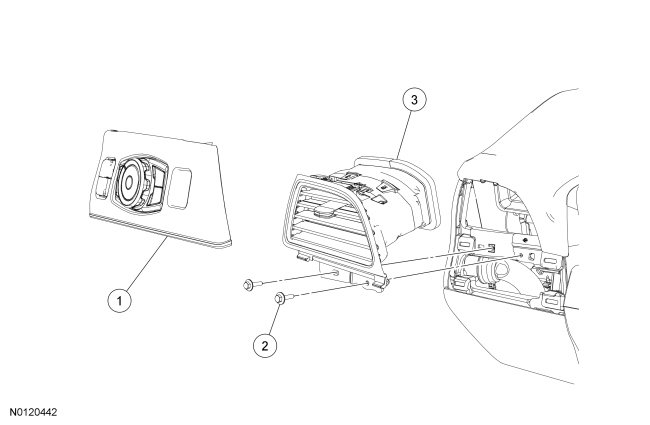

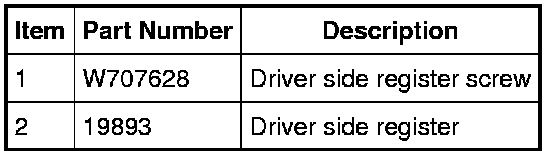

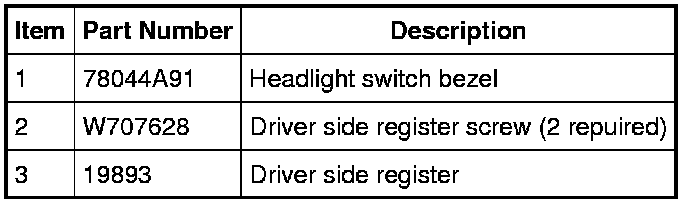

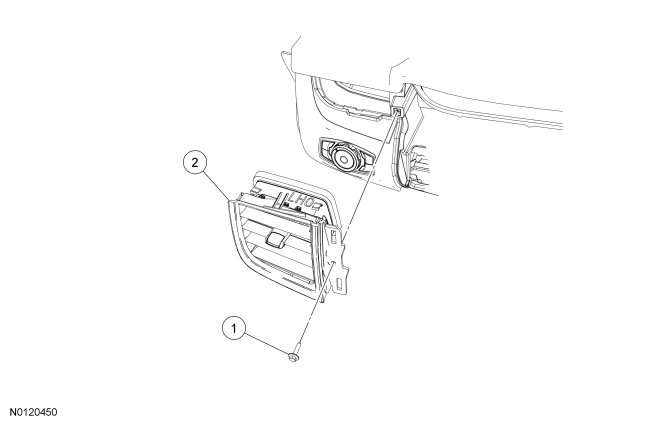

Driver Side Register - Edge

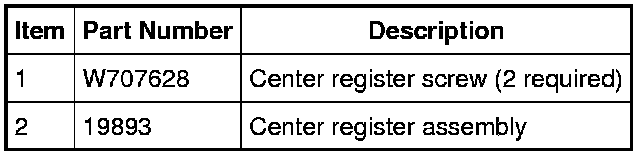

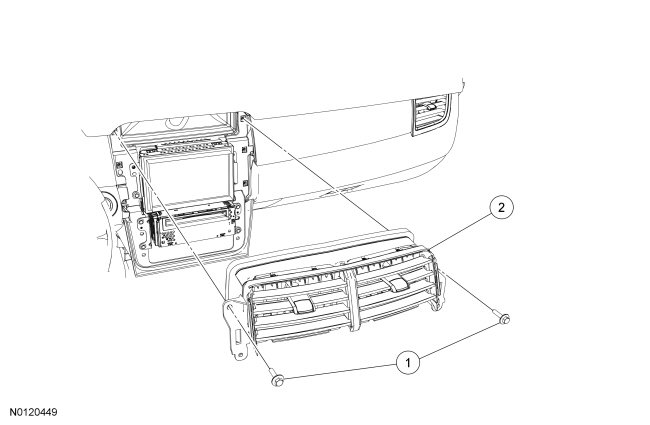

Center Register - Edge

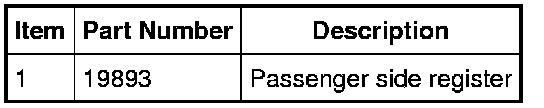

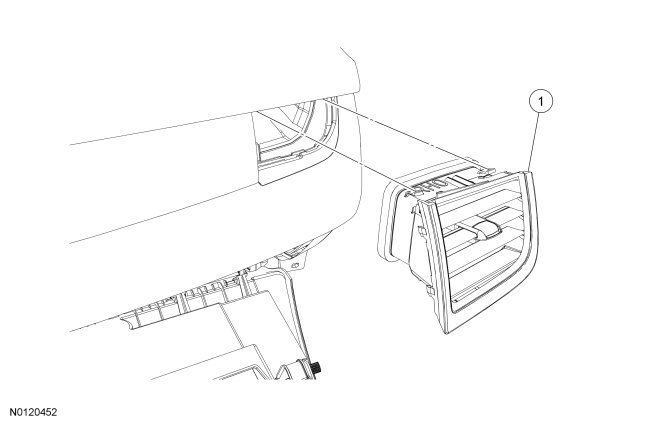

Passenger Side Register - Edge

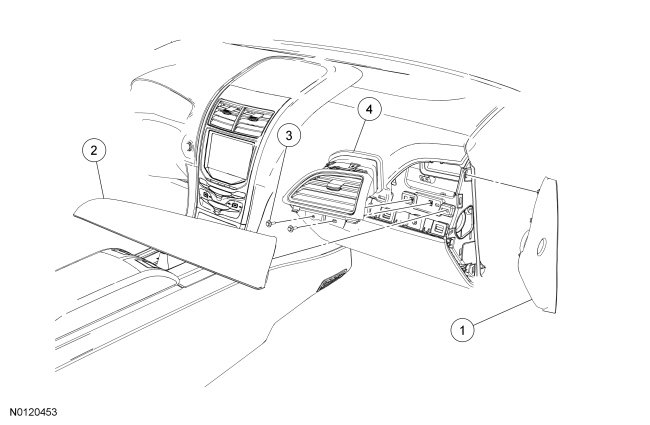

Driver Side Register - MKX

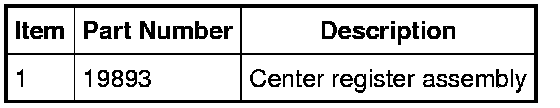

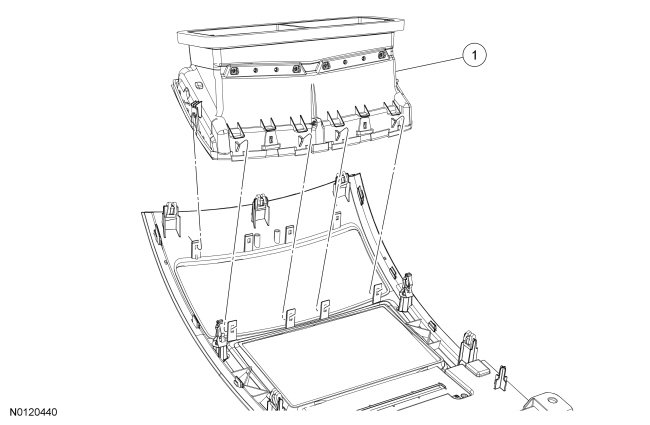

Center Register - MKX

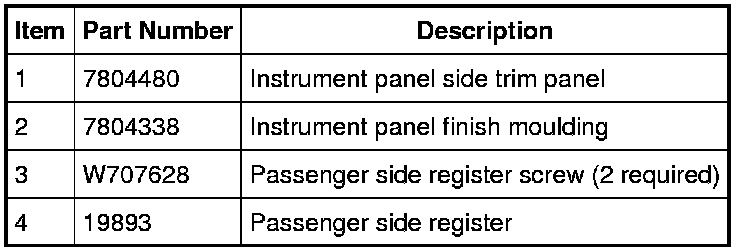

Passenger Side Register - MKX

1. Refer to the procedures and/or exploded views for any Warnings, Notices, Notes, Materials, Specifications, and Special Tools. Items in the exploded views may not be listed in order of removal.
