Control Module: Service and Repair

All Wheel Drive (AWD) Relay Module









Removal and Installation

1. If equipped, remove the RH floor storage compartment.
1. Lift the liftgate scuff plate upward, releasing the 4 retaining clips. For additional information, refer to Interior Trim - Exploded View in Trim Panel.

2. Remove the RH floor storage compartment.

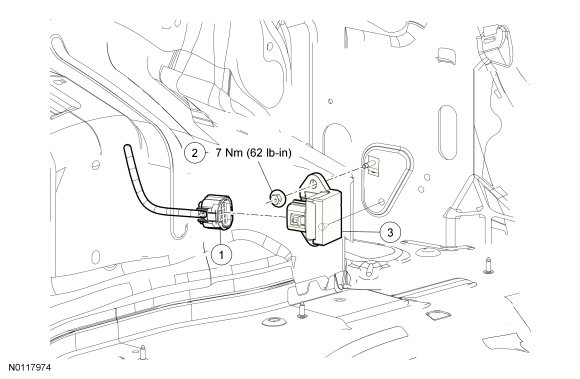

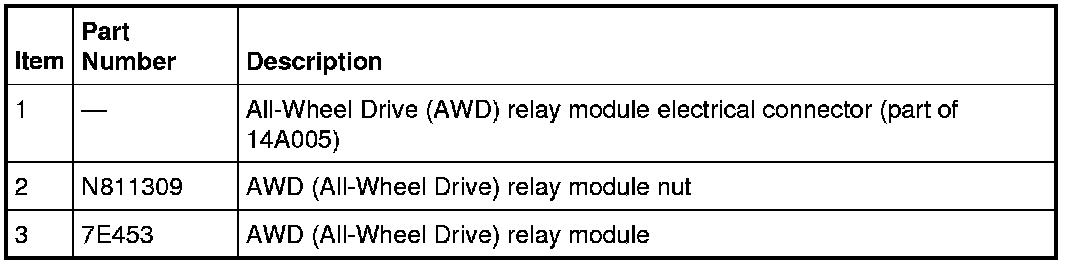

2. Disconnect the All-Wheel Drive (AWD) relay module electrical connector.

3. Remove the AWD (All-Wheel Drive) relay module nut.
- To install, tighten to 7 Nm (62 lb-in).


4. To install, reverse the removal procedure.
