Refrigerant Pressure Sensor / Switch: Service and Repair

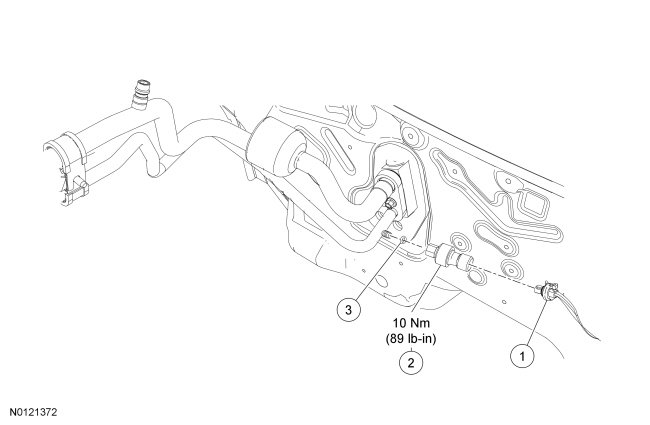

Air Conditioning (A/C) Pressure Transducer

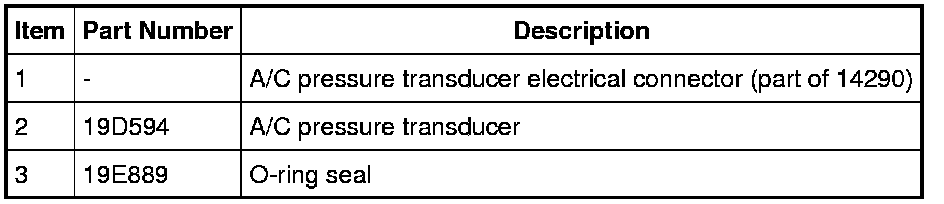

1. Disconnect the A/C pressure transducer electrical connector.

2. Remove the A/C pressure transducer.
- To install, tighten to 10 Nm (89 lb-in).

3. To install, reverse the removal procedure.
- Install a new O-ring seal.
