Exterior Mirror Cover




Exterior Mirror Cover

Removal and Installation

NOTE: If equipped with power folding mirrors, they must be synchronized any time the mirrors have been folded or unfolded without using the mirror control switch. For additional information, refer to Exterior Mirror Motor Synchronization - Power Folding Programming and Relearning.

1. Remove the mirror glass. For additional information, refer to Exterior Mirror Glass Exterior Mirror Glass.

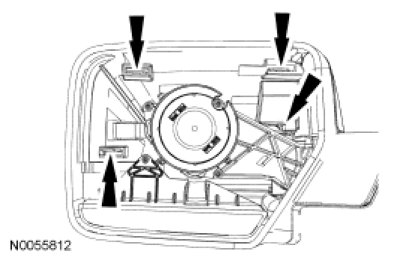

2. Release the 4 retaining tabs and remove the exterior mirror cover.





3. To install, reverse the removal procedure.
- If equipped with power folding mirrors, they must be synchronized. For additional information, refer to Exterior Mirror Motor Synchronization - Power Folding Programming and Relearning.
