Seat Control Switch - Third Row




Seat Control Switch - Third Row

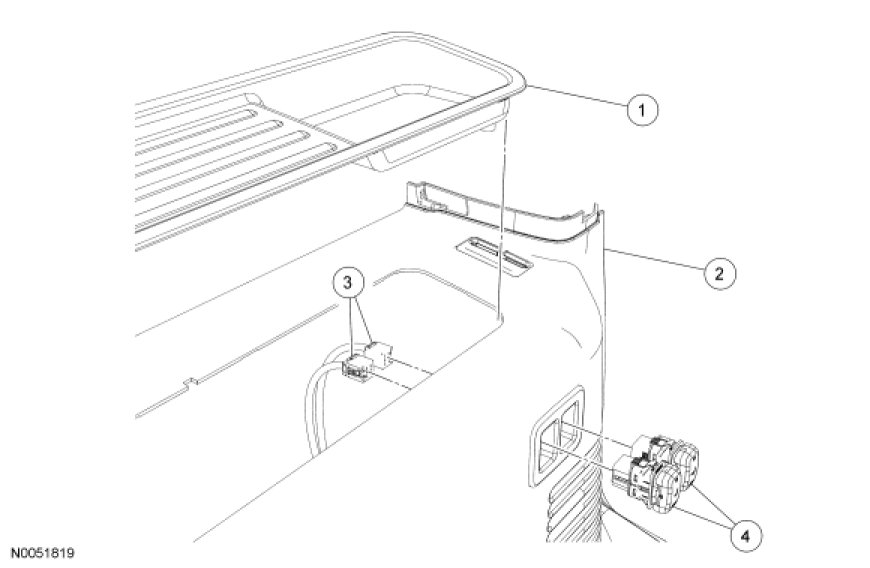

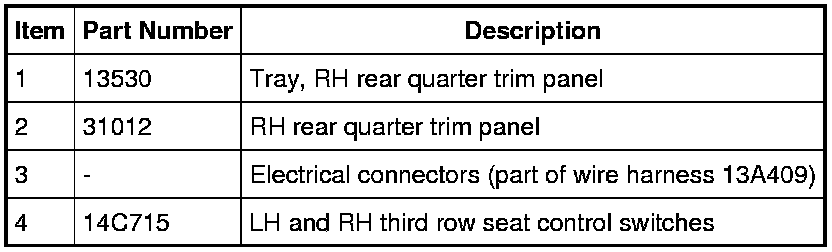

Removal and Installation

1. Release and remove the tray from the RH rear quarter trim panel.

2. NOTE: The LH and RH switch wiring harness electrical connectors are not interchangeable.

Remove the affected seat control switch.

- Release the 2 retaining tabs and detach the seat control switch from the RH rear quarter trim panel.

- Pull the seat control switch through the opening and disconnect the electrical connector.

3. To install, reverse the removal procedure.
