Steering Angle Sensor: Service and Repair




Steering Wheel Rotation Sensor









Removal and Installation

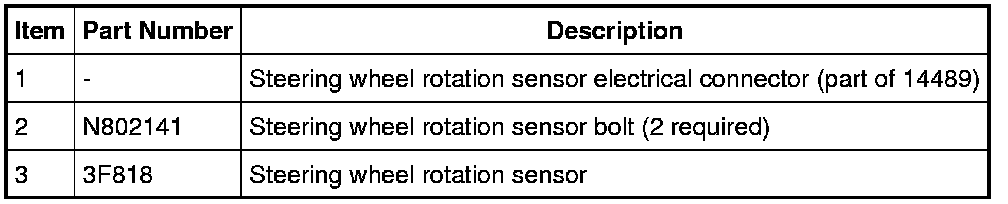

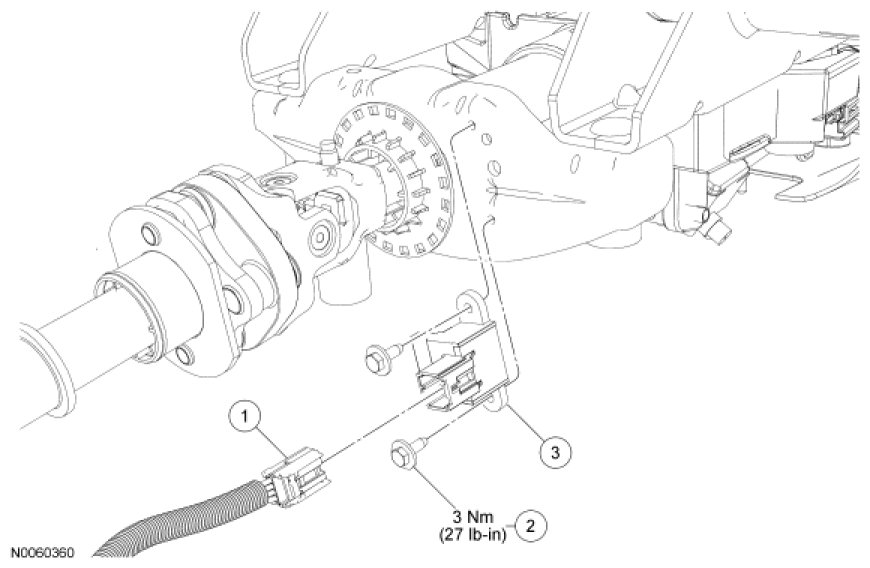

1. Disconnect the steering wheel rotation sensor electrical connector.

2. Remove the 2 bolts and the steering wheel rotation sensor.
- To install, tighten to 3 Nm (27 lb-in).

3. To install, reverse the removal procedure.

4. NOTE: If the sensor is not calibrated after installation, a DTC will be set in the ABS module.

Calibrate the sensor in the following sequence:

1. Start the engine.

2. Rotate the steering wheel from lock to lock a minimum of 2 times.
