Traction Control Switch: Service and Repair

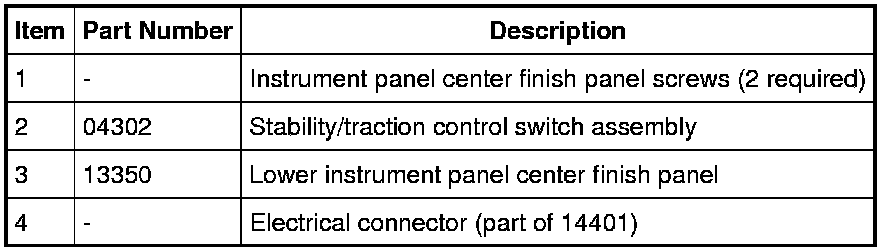

Stability/Traction Control Switch - Navigator









Removal and Installation

1. Apply the parking brake and move the shift lever to NEUTRAL.

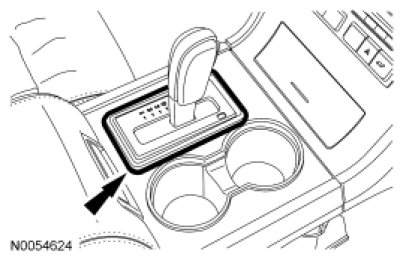

2. Remove the shift lever trim ring.





3. Remove the front floor console finish panel.

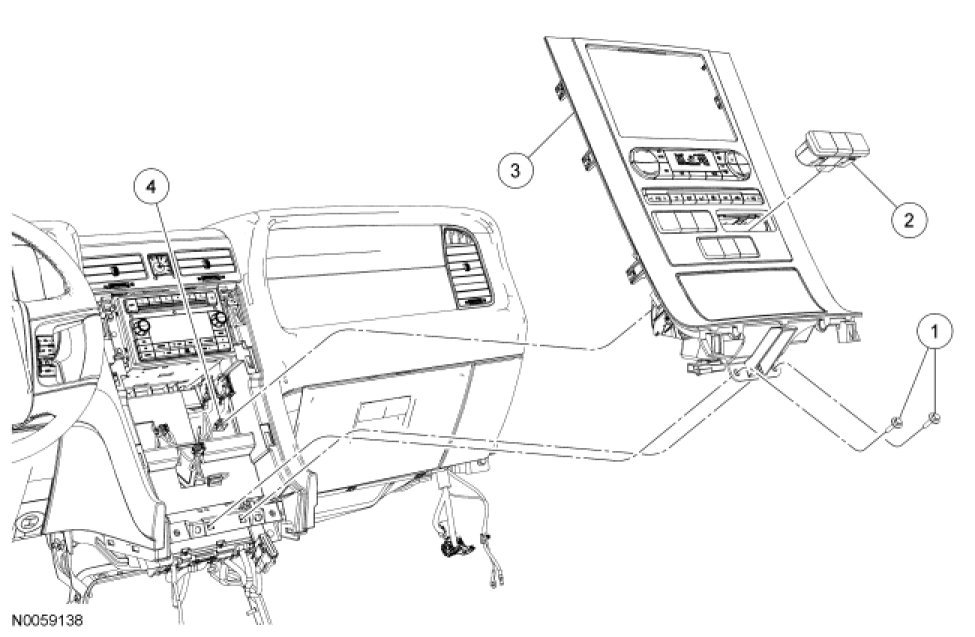

4. Remove the lower instrument panel finish panel in the following sequence.

1. Remove the 2 lower instrument panel finish panel screws.

2. Pull out on the panel to disengage the clips.

3. Disconnect the electrical connectors.

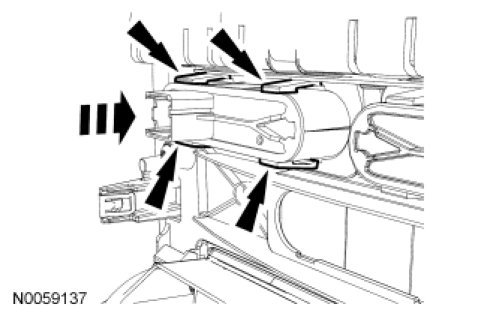

5. Press the 4 tabs and remove the stability/traction control switch assembly.





6. To install, reverse the removal procedure.
