Cruise Control Switch: Service and Repair

Cruise Control Switch

Expedition









Navigator









Removal and Installation

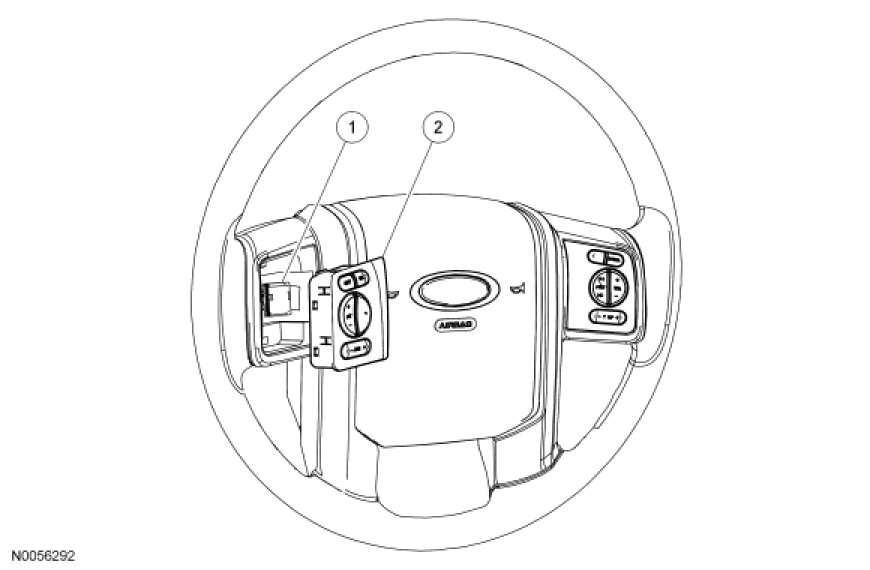

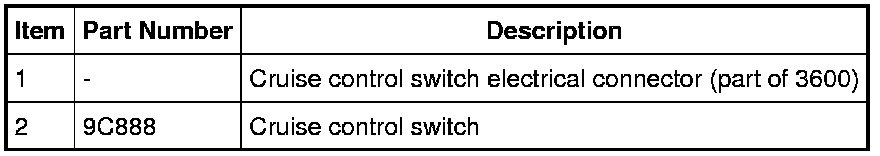

Expedition

NOTE: It is not necessary to remove the driver air bag module during this procedure.

NOTE: Be careful not to allow the cruise control switch electrical connector to fall back into the steering wheel.

1. Remove the cruise control switch by pulling the switch toward the rear of the vehicle.
- Disconnect the electrical connector.

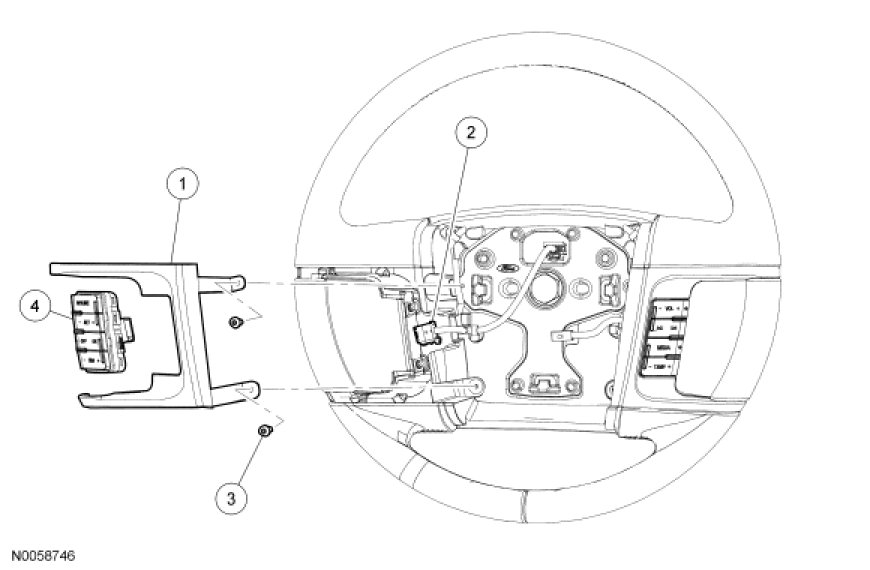

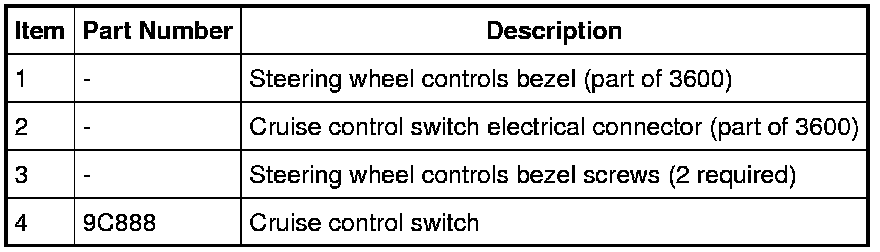

Navigator

2. Remove the driver air bag module. For additional information, refer to Supplemental Restraint System Driver Air Bag Module.

3. Remove the 2 screws and the steering wheel controls bezel.

4. Remove the cruise control switch by pulling the switch toward the rear of the vehicle.
- Disconnect the electrical connector.

All vehicles

5. To install, reverse the removal procedure.
