Horn: Service and Repair

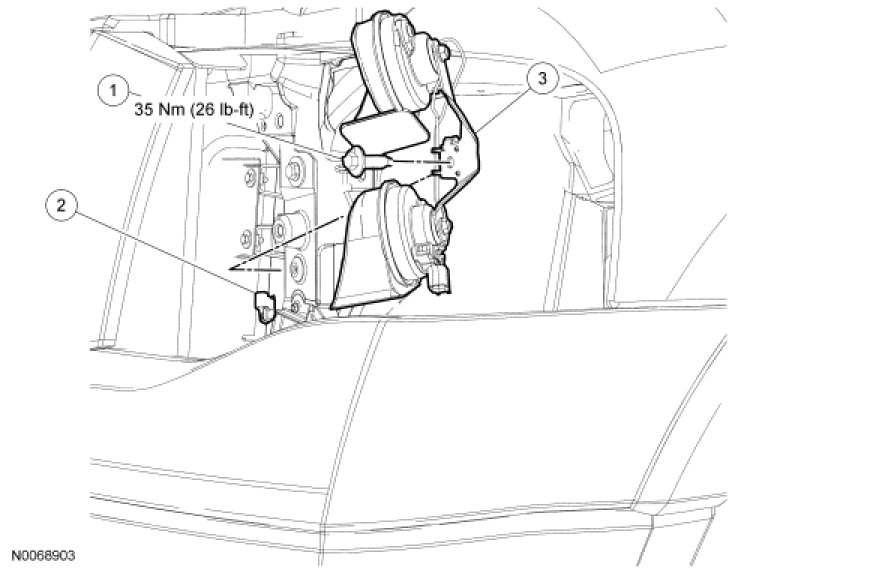

HornNOTE: Expedition shown, Navigator similar.
Removal and Installation 1.
Remove the LH headlamp assembly. For additional information, refer to Exterior Lighting
Service and Repair.
2.

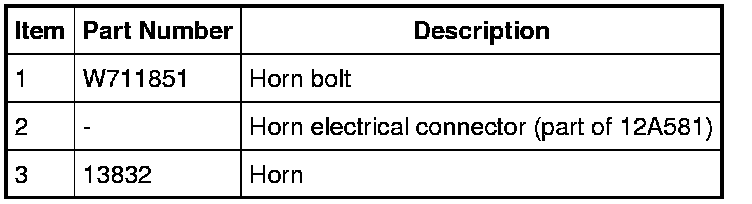

Remove the
horn bolt.
-
To install, tighten to 35 Nm (26 lb-ft).
3.
Disconnect the electrical connector and remove the
horn.
4.
To install, reverse the removal procedure.
