Turn Signals: Service and Repair

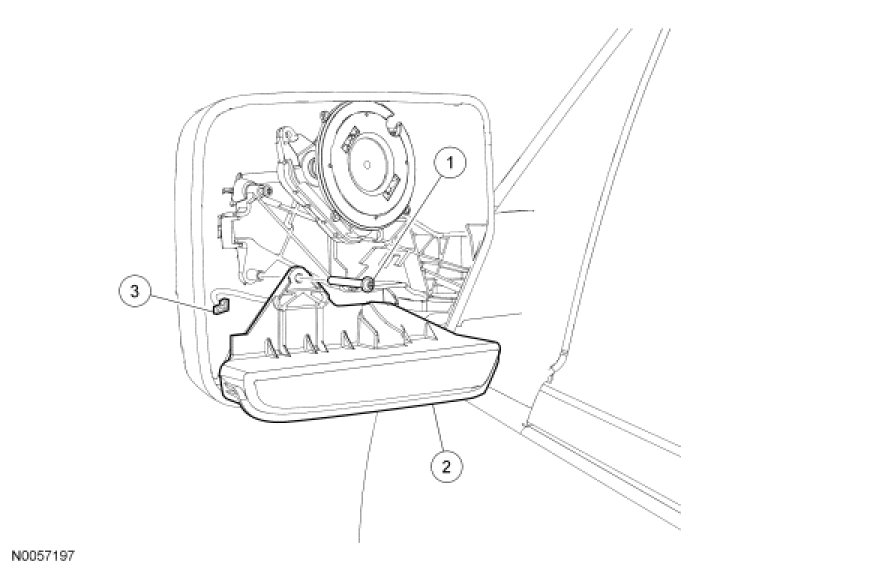

Side Turn Signal Lamp - Signal Mirror

NOTE: Navigator shown, Expedition similar.

Removal and Installation

1. Remove the mirror glass. For additional information, refer to Rear View Mirrors Exterior Mirror Glass.

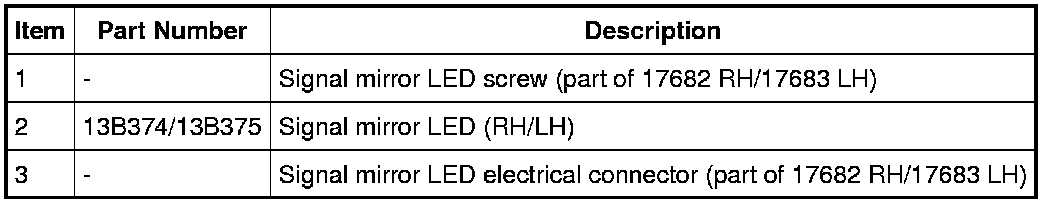

2. Remove the screw and the signal mirror LED.
- Disconnect the electrical connector.

3. To install, reverse the removal procedure.
