Radiator Grille Support

Radiator Grille Support

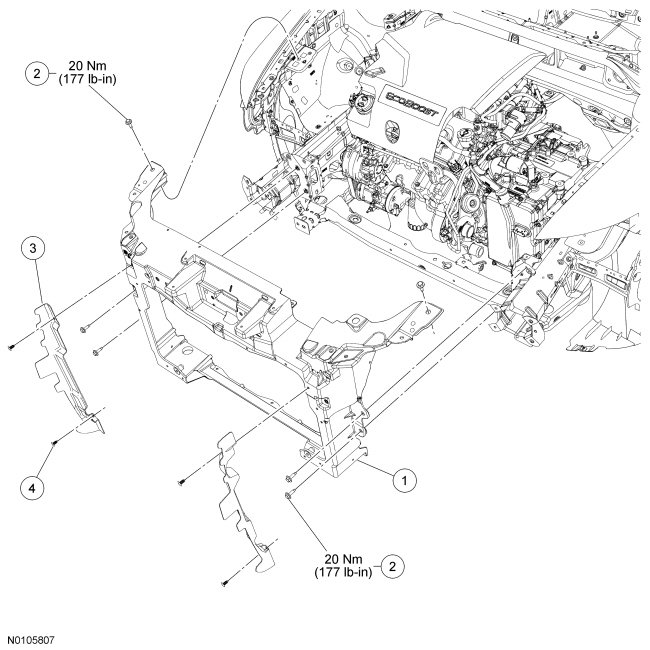

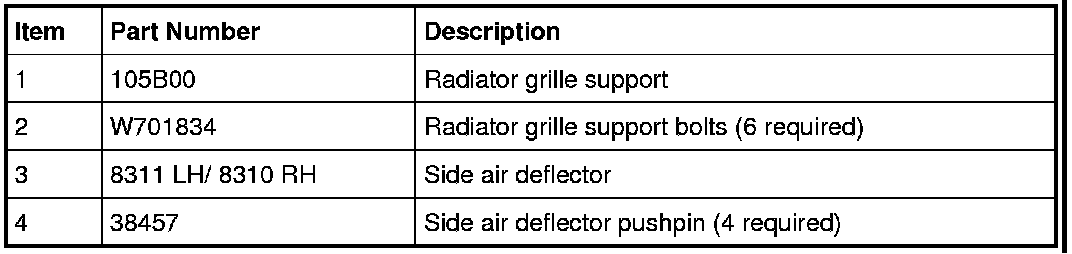

Removal and Installation

1. Remove the front bumper.

2. Remove the headlamps.

3. Remove the hood latch assembly.

4. Remove the radiator side air deflectors.
- Remove the 4 radiator air deflector pin-type retainers (2 each side).


5. Reposition the power steering fluid cooler.
- Remove the 2 power steering fluid cooler bolts.

- Remove the 2 power steering fluid cooler hose pin-type retainers.


6. Unclip the ambient air temp sensor wiring harness retainer clip and reposition the wiring harness.

7. Disconnect the hood sensor electrical connector.

8. Release all wiring harness retainers from the radiator grille support.

9. Remove the 6 radiator grille support bolts.

10. Remove the radiator grille support.

11. To install, reverse the removal procedure.
